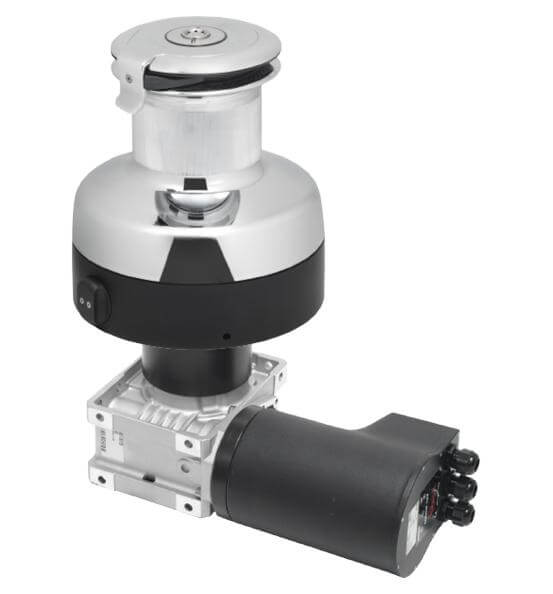

Antal 66 3-Gang Elektro (Horizontal) 12V verchromte Bronze-Winsch (3-Gang manuell)
MPN:
N/A
Marke:
Antal
Specifications for Antal 66 3-Gang Elektro (Horizontal) 12V verchromte Bronze-Winsch (3-Gang manuell)
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 18 |
| Empfohlener min. Leinendurchmesser (mm) | 10 |
| Electrics | |
| Voltage (V) | 12 |
| Leistung (W) | 1500 |
| Speed (Motor) | 3-Gang |
| Boat | |
| Style | Horizontal |
| Dimensions | |
| A (mm) | 199 |
| B (mm) | 311 |
| C (mm) | 115 |
| D (mm) | 248 |
| d (mm) | 144 |
| E (mm) | 74 |
| H (mm) | 293 |
| Basis Ø (mm) | 248 |
| Trommel Ø (mm) | 144 |
| Höhe (mm) | 293 |
| Motor Length (mm) | 311 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 3,1 |
| Getriebuntersetzung 2. Gang (X : 1) | 6 |
| Getriebuntersetzung 3. Gang (X : 1) | 18,8 |
| Gänge (manuell) | 3-Gang |
| Line recovery per rotation - 1st gear (mm) | 151 |
| Line recovery per rotation - 2nd gear (mm) | 77 |
| Line recovery per rotation - 3rd gear (mm) | 24 Monate |
| Line speed - 1st gear (m/min) | 23 |
| Line speed - 2nd gear (m/min) | 12 |
| Line speed - 3rd gear (m/min) | 3.6 |
| Kraftuntersetzung 1. Gang (X : 1) | 10,7 |
| Kraftuntersetzung 2. Gang (X : 1) | 20,8 |
| Kraftuntersetzung 3. Gang (X : 1) | 65,3 |
| Pulling load - Max (kg) | 2600 |
| Skirt Details | Schwarz eloxiertes Aluminium |
| Material | |
| Material | verchromte Bronze |
| Undefined | |
| Deckstärke max. (mm) | 74 |
| Größe | 66 |
| Weight | |
| Gewicht (g) | 45500 |
| Garantie (Jahren) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
