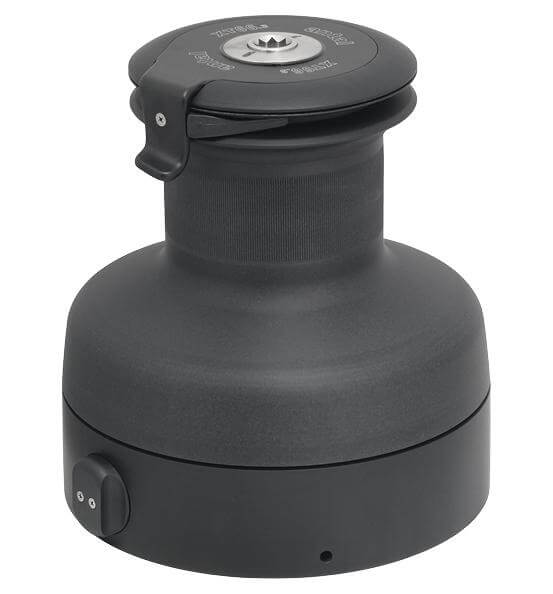

Specifications for Antal 62 3-Gang Self-Tailing Aluminium-Winsch
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 16 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| Basis Ø (mm) | 224 |
| Trommel Ø (mm) | 120 |
| Höhe (mm) | 245 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 1,6 |
| Getriebuntersetzung 2. Gang (X : 1) | 4.3 |
| Getriebuntersetzung 3. Gang (X : 1) | 14,9 |
| Gänge (manuell) | 3-Gang |
| Line recovery per rotation - 1st gear (mm) | 241 |
| Line recovery per rotation - 2nd gear (mm) | 89 |
| Line recovery per rotation - 3rd gear (mm) | 26 |
| Kraftuntersetzung 1. Gang (X : 1) | 6,6 |
| Kraftuntersetzung 2. Gang (X : 1) | 17,8 |
| Kraftuntersetzung 3. Gang (X : 1) | 62.1 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Größe | 62 |
| Weight | |
| Gewicht (g) | 12800 |
| Garantie (Jahren) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
