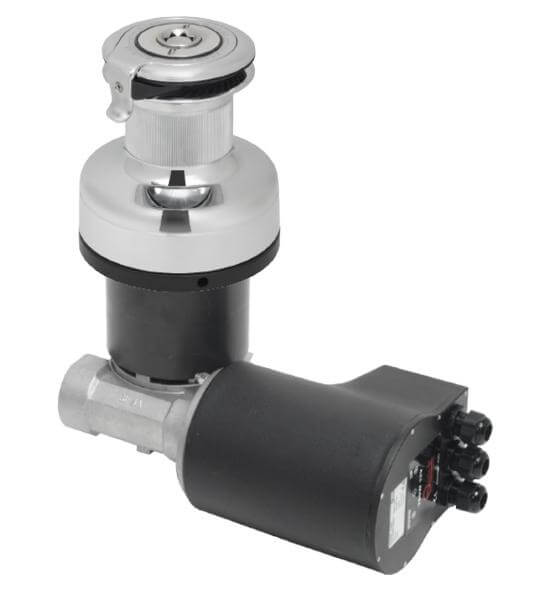

Antal 40 2-Gang Elektro (Horizontal) 12V verchromte Bronze-Winsch (2-Gang manuell)
MPN:
N/A
Marke:
Antal
Specifications for Antal 40 2-Gang Elektro (Horizontal) 12V verchromte Bronze-Winsch (2-Gang manuell)
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 6 |
| Electrics | |
| Voltage (V) | 12 |
| Leistung (W) | 700 |
| Speed (Motor) | 2-Gang |
| Boat | |
| Style | Horizontal |
| Dimensions | |
| A (mm) | 189 |
| B (mm) | 263 |
| C (mm) | 115 |
| D (mm) | 153 |
| d (mm) | 80 |
| E (mm) | 64 |
| H (mm) | 157 |
| Basis Ø (mm) | 153 |
| Trommel Ø (mm) | 80 |
| Höhe (mm) | 157 |
| Motor Length (mm) | 263 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 2 |
| Getriebuntersetzung 2. Gang (X : 1) | 6,4 |
| Gänge (manuell) | 2-Gang |
| Line recovery per rotation - 1st gear (mm) | 125 |
| Line recovery per rotation - 2nd gear (mm) | 40 |
| Line speed - 1st gear (m/min) | 18 |
| Line speed - 2nd gear (m/min) | 6 |
| Kraftuntersetzung 1. Gang (X : 1) | 12,8 |
| Kraftuntersetzung 2. Gang (X : 1) | 40 |
| Pulling load - Max (kg) | 800 |
| Skirt Details | Schwarz eloxiertes Aluminium |
| Material | |
| Material | verchromte Bronze |
| Undefined | |
| Deckstärke max. (mm) | 64 |
| Größe | 40 |
| Weight | |
| Gewicht (g) | 17700 |
| Garantie (Jahren) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
