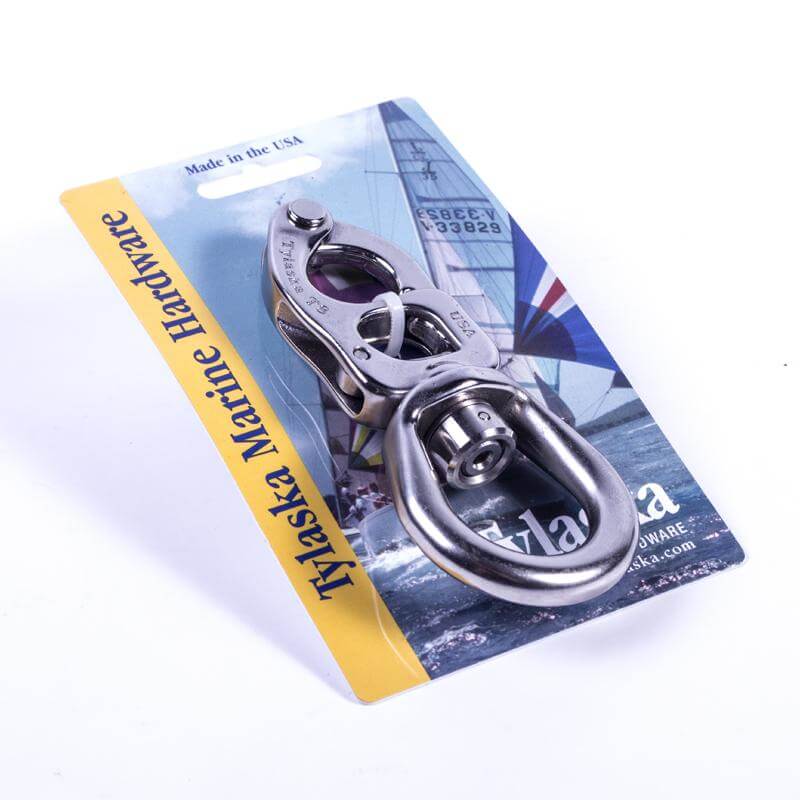

Specifications for Tylaska T8L grillo a scatto con archetto grande
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 24 |
| Stile | Grillo a bail girevole (grande) |
| Load | |
| SWL (kg) | 1818 |
| NBL (kg) | 3636 |
| Dimensions | |
| A (mm) | 16 |
| B (mm) | 24.1 |
| C (mm) | 99.9 |
| Material | |
| Materiale | Acciaio inox |
| Grado del materiale | 17-4PH SS |
| Undefined | |
| Colore* | Acciaio inox lucidato or Black Oxide or Bronze PVD |
| Weight | |
| Peso (g) | 128 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Tylaska T8 Snap Shackles are perfect for applications requiring high strength and low weight. They have a SWL of 1,818kg and weigh only 97g in the standard bail configuration. Ideal for the 24 to 36 foot sailboat. Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 24 |
| Stile | Grillo a bail girevole (grande) |
| Load | |
|---|---|
| SWL (kg) | 1818 |
| NBL (kg) | 3636 |
| Dimensions | |
|---|---|
| A (mm) | 16 |
| B (mm) | 24.1 |
| C (mm) | 99.9 |
| Material | |
|---|---|
| Materiale | Acciaio inox |
| Grado del materiale | 17-4PH SS |
| Undefined | |
|---|---|
| Colore* | Acciaio inox lucidato oppure Black Oxide oppure Bronze PVD |
| Weight | |
|---|---|
| Peso (g) | 128 |
