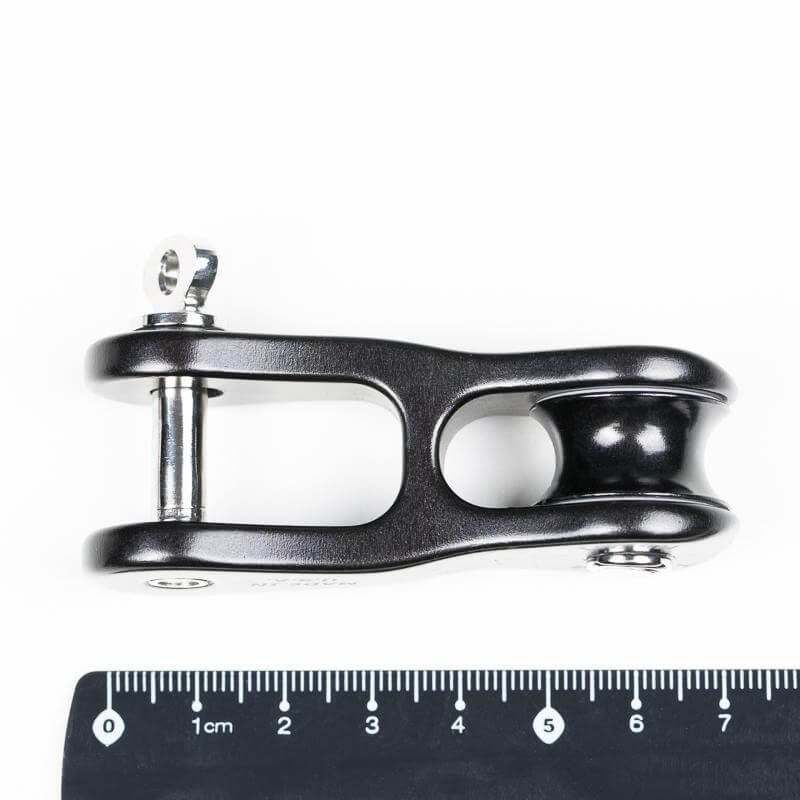

Specifications for Tylaska H5 2:1 Grillo per drizza in alluminio
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Boat | |
| Dimensione barca consigliata - Max (ft) | 30 |
| Dimensione barca consigliata - Min (ft) | 20 |
| Load | |
| SWL (kg) | 1136 |
| NBL (kg) | 2272 |
| Dimensions | |
| A (mm) | 74.4 |
| B (mm) | 25.4 |
| C (mm) | 4.6 |
| D (mm) | 35.6 |
| E (mm) | 23.1 |
| F (mm) | 16.1 |
| G (mm) | 13 |
| H (mm) | 19.1 |
| I (mm) | 25.1 |
| J (mm) | 6.6 |
| Material | |
| Materiale | 17-4PH |
| Weight | |
| Peso (g) | 65 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Using a high strength composite sleave bearing, Tylaska has created true 2-1 halyard shackles capable of handling the full rated load of the shackle. The size was made to fit standard sail headboards without adding any unnecessary weight. Strength was optimized by computer and then verified by numerous 'make and break' destructive tests.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 30 |
| Dimensione barca consigliata - Min (ft) | 20 |
| Load | |
|---|---|
| SWL (kg) | 1136 |
| NBL (kg) | 2272 |
| Dimensions | |
|---|---|
| A (mm) | 74.4 |
| B (mm) | 25.4 |
| C (mm) | 4.6 |
| D (mm) | 35.6 |
| E (mm) | 23.1 |
| F (mm) | 16.1 |
| G (mm) | 13 |
| H (mm) | 19.1 |
| I (mm) | 25.1 |
| J (mm) | 6.6 |
| Material | |
|---|---|
| Materiale | 17-4PH |
| Weight | |
|---|---|
| Peso (g) | 65 |
