Specifications for Tylaska H12 2:1 Grillo per drizza in alluminio apribile
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 16 |
| Cima consigliata - Ø Min (mm) | 11 |
| Boat | |
| Dimensione barca consigliata - Max (ft) | 45 |
| Dimensione barca consigliata - Min (ft) | 30 |
| Load | |
| SWL (kg) | 2727 |
| NBL (kg) | 5454 |
| Dimensions | |
| A (mm) | 103.6 |
| B (mm) | 38.1 |
| C (mm) | 7.9 |
| D (mm) | 50.8 |
| E (mm) | 31.7 |
| F (mm) | 22.4 |
| G (mm) | 16.8 |
| H (mm) | 28.4 |
| I (mm) | 36.5 |
| J (mm) | 9.7 |
| Material | |
| Materiale | 17-4PH |
| Weight | |
| Peso (g) | 180 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

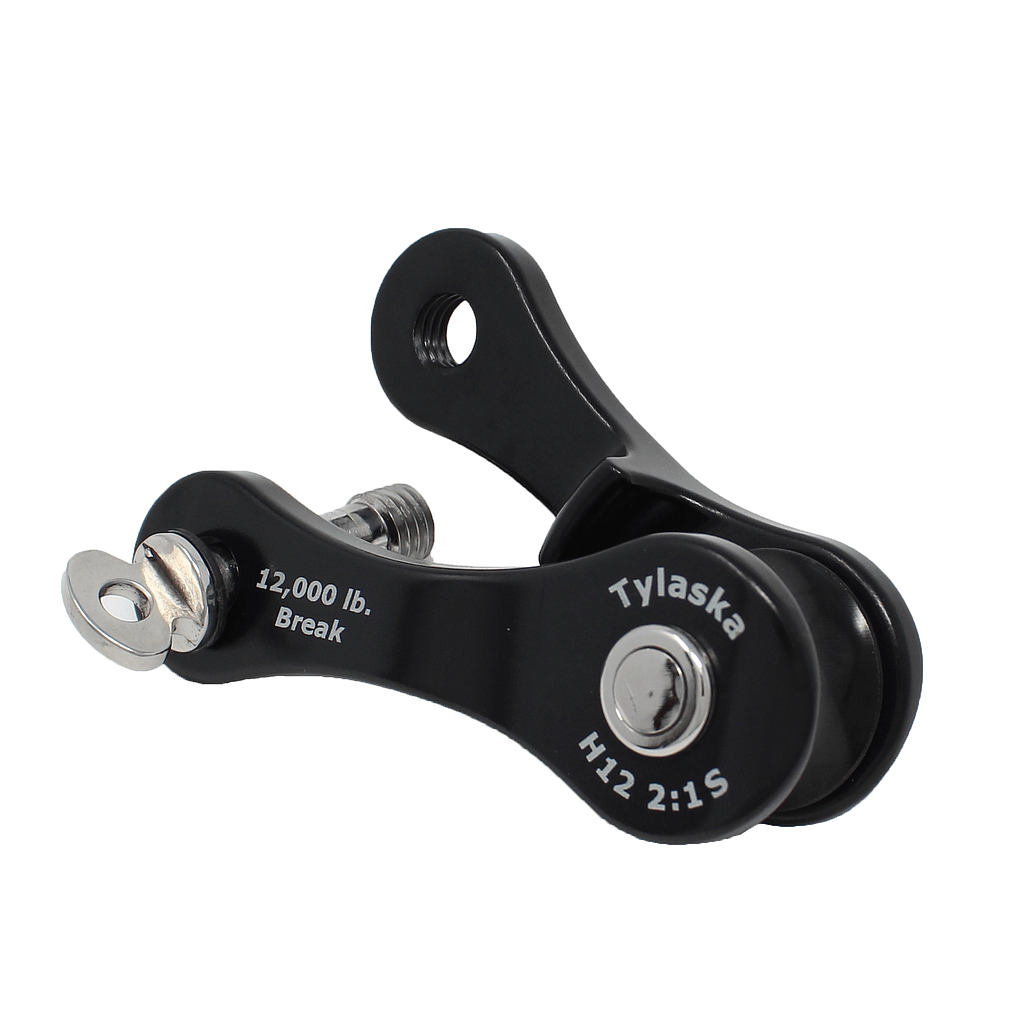

The Tylaska Split 2:1 halyard shackle offers snatch block convenience to the popular lightweight offering from Tylaska. These are ideal for quick installation and removal from existing rigging.
