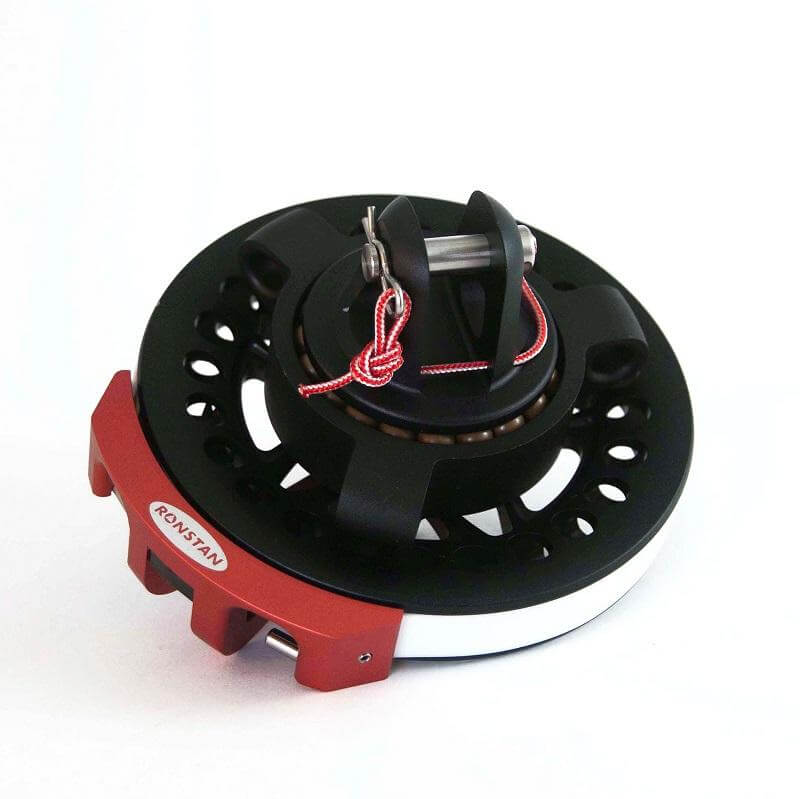

Specifications for Ronstan Serie 120 avvolgitore - Tamburo, top-down
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 8 |
| Boat | |
| Dimensione barca consigliata - Max (ft) | 40 |
| Load | |
| SWL (kg) | 1800 |
| NBL (kg) | 3600 |
| Dimensions | |
| A (mm) | 126.4 |
| B (mm) | 18.1 |
| C (mm) | 77.5 |
| D (mm) | 107.5 |
| E (mm) | 26.5 |
| F (mm) | 15.4 |
| G (mm) | 7.9 |
| H (mm) | 8 |
| I (mm) | 120 |
| J (mm) | 131 |
| K (mm) | 30.3 |
| L (mm) | 9 |
| Ø tamburo (mm) | 120 |
| Ø perno ganascia (mm) | 8 |
| Larghezza ganascia (mm) | 15.4 |
| Weight | |
| Peso (g) | 498 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Ronstan Generation 2 – Rotation stop
|
|
|
|
Ronstan Generation 2 – installation of furling line
|
|
|
R-RS212100_Ronstan S120 Gen 2 Top Down Furler Manual_001.pdf
Ronstan Series 120 Gen 2 Top Down Furler Manual
|
|
|
|
R-RS212100_Ronstan S120 Gen 2 Top Down Furler Drawing_001.PDF
Ronstan S120 Gen 2 Top Down Furler Technical Drawing
|
