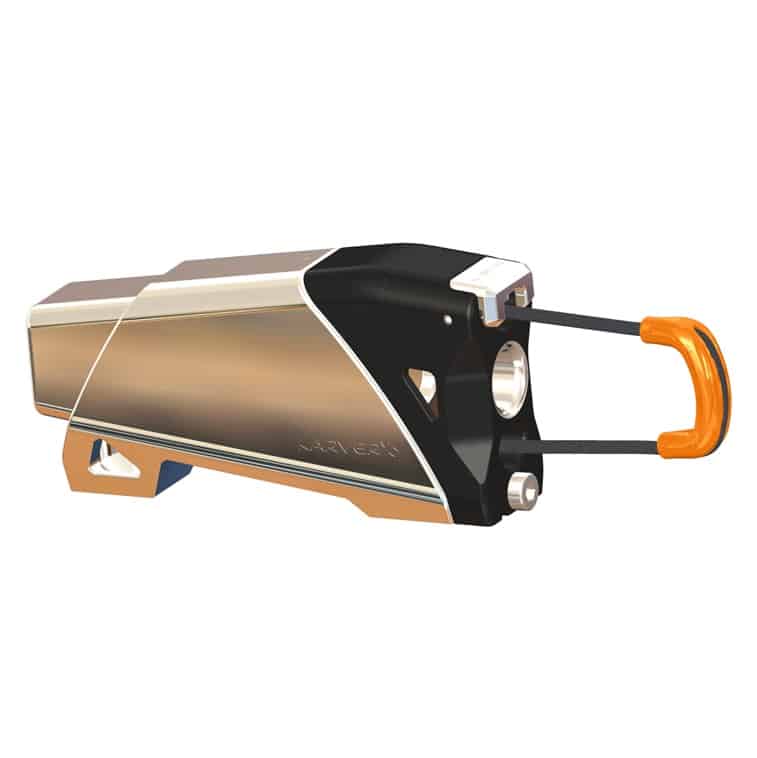

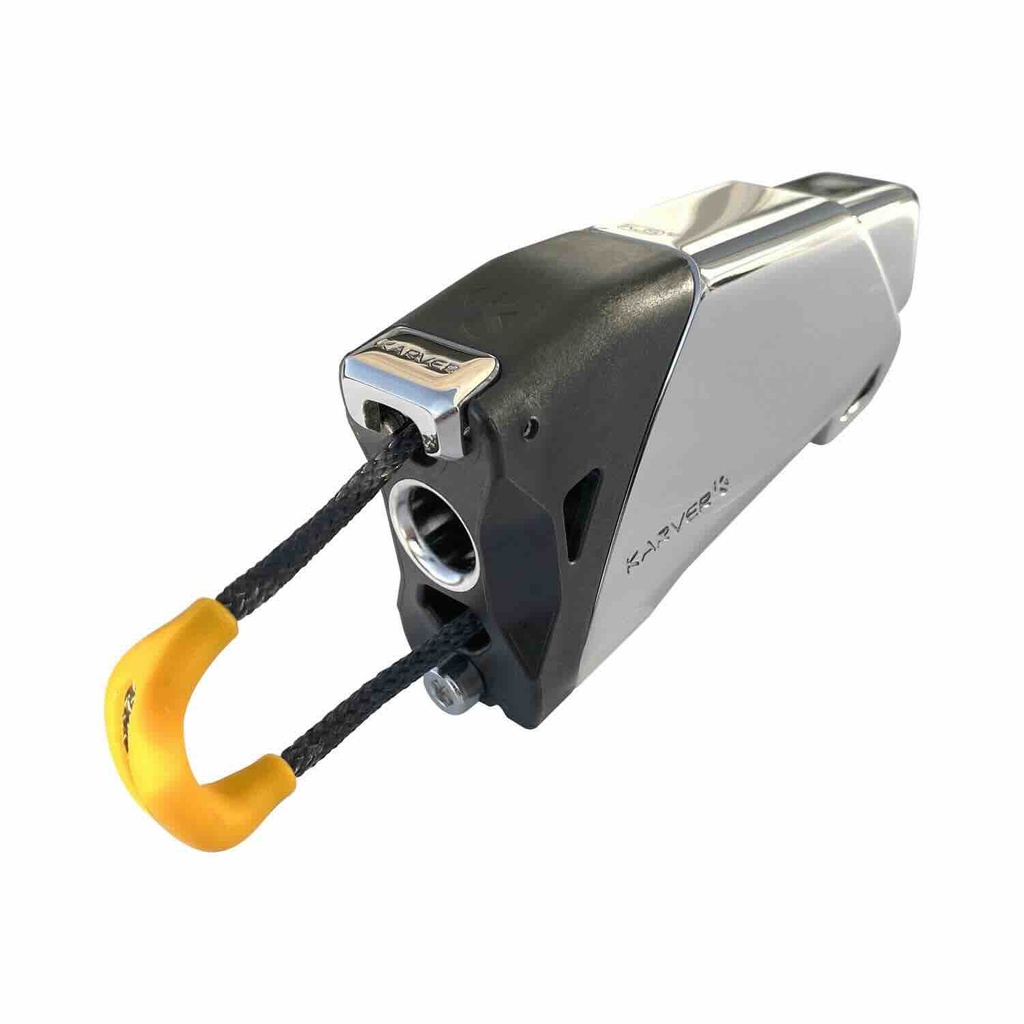

Karver KJS12 Rope Clutch: High-Performance Clutch for Cruising and Racing Sailboats
The Karver KJS12 Rope Clutch is designed to securely handle lines up to 12mm in diameter, with a working load limit of 1.2 tons, making it suitable for a wide range of cruising and racing sailboats.
Key Features:
- Eco-Design: Constructed through stainless steel die casting, the KJS12 minimises raw material usage and environmental impact while extending product lifespan.
- Compact and Lightweight: The clutch is designed to be compact and lightweight, facilitating easy installation and operation.
- Rope-Friendly Mechanism: Features dual movable jaws and ultra-low-friction sliding parts, reducing rope wear and ensuring smooth operation.
- Remote Control Capability: Can be operated remotely by disabling the open-position lock, allowing control with a single line, enhancing safety and convenience.
- Easy Maintenance: The entire mechanism can be removed without detaching the base, and all parts are captive during disassembly, simplifying maintenance and preventing loss of components.
Specifications:
- Weight: 0.557 kg
- Working Load: 1.2 tons
- Breaking Load: 2.4 tons
- Line Diameter: 8 to 12 mm
- Mounting: Two M8 screws with a 70 mm spacing, compatible with many existing setups.
The Karver KJS12 Rope Clutch combines traditional aesthetics with innovative features, providing sailors with a reliable, efficient, and environmentally conscious solution for line management.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 12 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1200 |
| NBL (kg) | 2400 |
| Dimensions | |
|---|---|
| Ø foro di fissaggio (mm) | 8 |
| Interasse fori di fissaggio (mm) | 70 |
| Altezza (mm) | 58 |
| Lunghezza (mm) | 118.2 |
| Larghezza (mm) | 29 |
| Compatibility | |
|---|---|
| Numero di fori di fissaggio | 2 |
| Weight | |
|---|---|
| Peso (g) | 557 |
