KA-KBRA065-SN_Karver Drawing Snatch Block_001.PDF

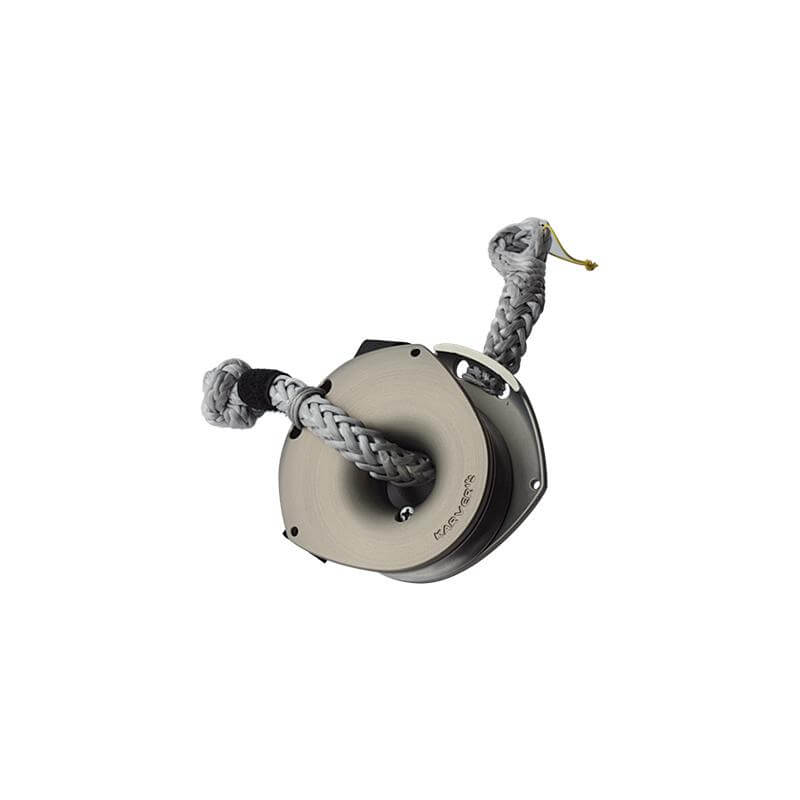

Karver KBR65 High Load Snatch Block Technical Drawing
|
|
|
|
KA-KBR_Karver Drawing Block Materials Properties_001.PDF
Karver KBR Block Materials Diagram
|
|
|
|
KA-KBRA065-SN_Karver 2D Drawing Snatch Block_001.DWG
Karver KBRA65 2D Snatch Block Technical Drawing
|
|
|
|
KA-KBRA065-SN_Karver 3D Drawing Snatch Block_001.IGS
Karver KBRA65 3D Snatch Block Technical Drawing
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 16 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 6500 |
| NBL (kg) | 13000 |
| Blocks | |
|---|---|
| Tipo di cuscinetti | - |
| Cricchetto | No |
| Dimensions | |
|---|---|
| Ø interno (mm) | 23 |
| Ø puleggia (mm) | 75 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Peso (g) | 326 |
