KA-KWS052_Karver Drawing Speed Winch_001.PDF

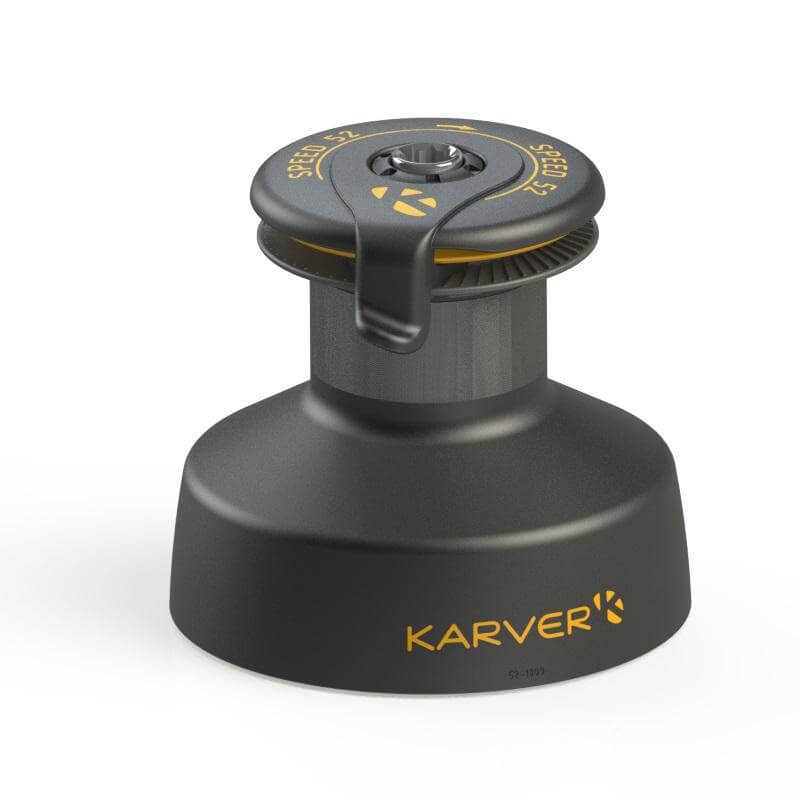

Karver 52-4 S/T Ultra Speed Winch Technical Drawing
|
|
|
|
KA-KWS052_Karver 2D Drawing Speed Winch_001.DWG
Karver KWS52 2D Speed Winch Technical Drawing
|
|
|
|
KA-KWS052_Karver 3D Drawing Speed Winch_001.IGS
Karver KWS52 3D Speed Winch Technical Drawing
|
|
|
|
KA-KW_Karver Winch Specifications FR EN_001.pdf
Karver Winch Specifications Diagram-French/English
|
|
|
|
KA-KW_Karver KWS52 KWP150 Winch Template FR EN_001.PDF
Karver KWS52 KWP150 Winch Datasheet-French/English
|
|
|
|
KA_Karver Winches Main Specs EN_001.pdf
Karver Winches Datasheet
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 14 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
|---|---|
| Stile | Autostoppante |
| Load | |
|---|---|
| SWL (kg) | 1800 |
| Dimensions | |
|---|---|
| Ø base (mm) | 220 |
| Ø tamburo (mm) | 100 |
| Altezza (mm) | 203 |
| Altezza ingresso cima (mm) | 97 |
| Winches | |
|---|---|
| Rapporto ingranaggi 1 (X : 1) | 0.48 |
| Rapporto ingranaggi 2 (X : 1) | 2.18 |
| Rapporto ingranaggi 3 (X : 1) | 2.4 |
| Rapporto ingranaggi 4 (X : 1) | 10.91 |
| Marce (manuale) | 4 velocità |
| Rapporto potenza 1 (X : 1) | 2.44 |
| Rapporto potenza 2 (X : 1) | 11.08 |
| Rapporto potenza 3 (X : 1) | 12.2 |
| Rapporto potenza 4 (X : 1) | 55.42 |
| Material | |
|---|---|
| Materiale | Alluminio |
| Undefined | |
|---|---|
| Taglia | 52 |
| Weight | |
|---|---|
| Peso (g) | 8800 |
| Garanzia (anni) | 5 |
