KA-KWS040_Karver Drawing Speed Winch_001.PDF

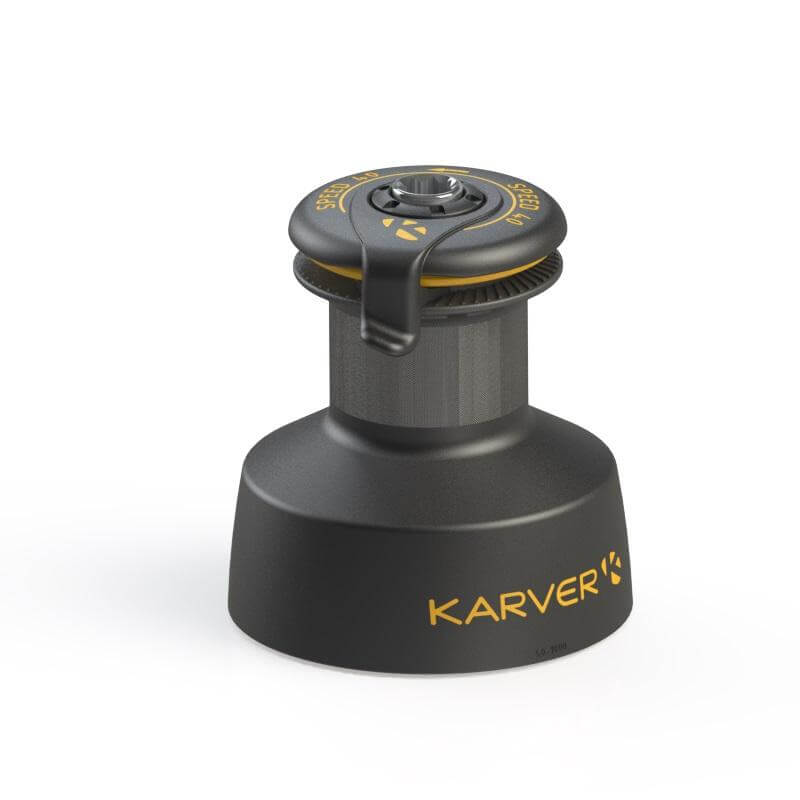

Karver 40-4 S/T Ultra Speed Winch Technical Drawing
|
|
|
|
KA-KWS040_Karver 2D Drawing Speed Winch_001.DWG
Karver KWS40 2D Speed Winch Technical Drawing
|
|
|
|
KA-KWS040_Karver 3D Drawing Speed Winch_001.IGS
Karver KWS40 3D Speed Winch Technical Drawing
|
|
|
|
KA-KW_Karver Winch Specifications FR EN_001.pdf
Karver Winch Specifications Diagram-French/English
|
|
|
|
KA-KW_Karver KWS40 KWP110 Winch Template FR EN_001.PDF
Karver KWS40 KWP110 Winch Datasheet-French/English
|
|
|
|
KA_Karver Winches Main Specs EN_001.pdf
Karver Winches Datasheet
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 12 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
|---|---|
| Stile | Autostoppante |
| Load | |
|---|---|
| SWL (kg) | 850 |
| Dimensions | |
|---|---|
| Ø base (mm) | 171 |
| Ø tamburo (mm) | 84 |
| Altezza (mm) | 189 |
| Altezza ingresso cima (mm) | 87 |
| Winches | |
|---|---|
| Rapporto ingranaggi 1 (X : 1) | 0.38 |
| Rapporto ingranaggi 2 (X : 1) | 1.32 |
| Rapporto ingranaggi 3 (X : 1) | 1.92 |
| Rapporto ingranaggi 4 (X : 1) | 6.61 |
| Marce (manuale) | 4 velocità |
| Rapporto potenza 1 (X : 1) | 2.3 |
| Rapporto potenza 2 (X : 1) | 8 |
| Rapporto potenza 3 (X : 1) | 11.6 |
| Rapporto potenza 4 (X : 1) | 40 |
| Material | |
|---|---|
| Materiale | Alluminio |
| Undefined | |
|---|---|
| Taglia | 40 |
| Weight | |
|---|---|
| Peso (g) | 5700 |
| Garanzia (anni) | 5 |
