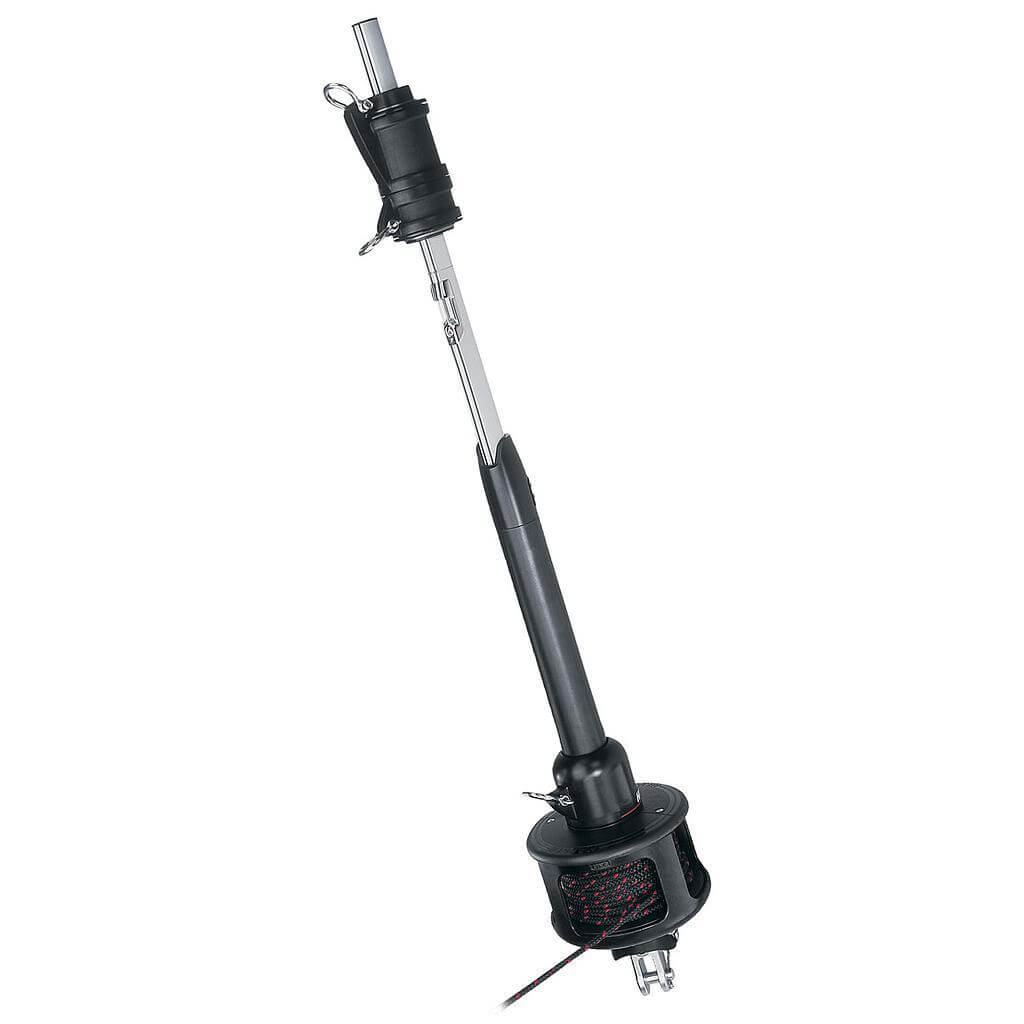

Specifications for Harken MKIV Unit 3 Sistema avvolgifiocco
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 60 |
| Dimensione barca consigliata - Min (ft) | 45 |
| Dimensions | |
| A (mm) | 186 |
| B (mm) | 296 |
| C (mm) | 86 |
| D (mm) | 247 |
| E (mm) | 121 |
| F (mm) | 1286 |
| G (mm) | 467 |
| H (mm) | 420 |
| I (mm) | 188 |
| J (mm) | 38 |
| K (mm) | 43 |
| Ø tamburo (mm) | 247 |
| Ø perno (mm) | 22.2 |
| Ø cavo metallico Max (mm) | 12 |
| Furling | |
| Lunghezza estrusione (mm) | 2130 |
| Ø estrusione (mm) | 38 |
| Riferimento estrusione | 7413.30 |
| Peso estrusione (g/m) | 985 |
| Lunghezza strallo Max (mm) | 24890 |
| Lunghezza strallo Std. (mm) | 22760 |
| Canaletta ralinga (Singola/Doppia) | Doppia canaletta d’inferitura |
| Ø ralinga (mm) | 5 |
| Rigging | |
| Dimensione asta DASH Max | -30 |
| Ø stelo Max (mm) | 11.1 |
| Weight | |
| Peso (g) | 40823 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Harken MKIV, MKIC Ocean & MKIV Underdeck Range.pdf
Harken Catalogue for the MKIV, MKIV Ocean and MKIV Underdeck Ranges.
|
|
|
|
MKIV Unit 3:4_EN.pdf
English Jib Reefing and Furling Installation Manual for H-7413.10 (Unit 3), H-7414.10 (Unit 4)
|
|
|
|
Harken_MKIV_JibFurler_catalogue_2020_EN.pdf
|
