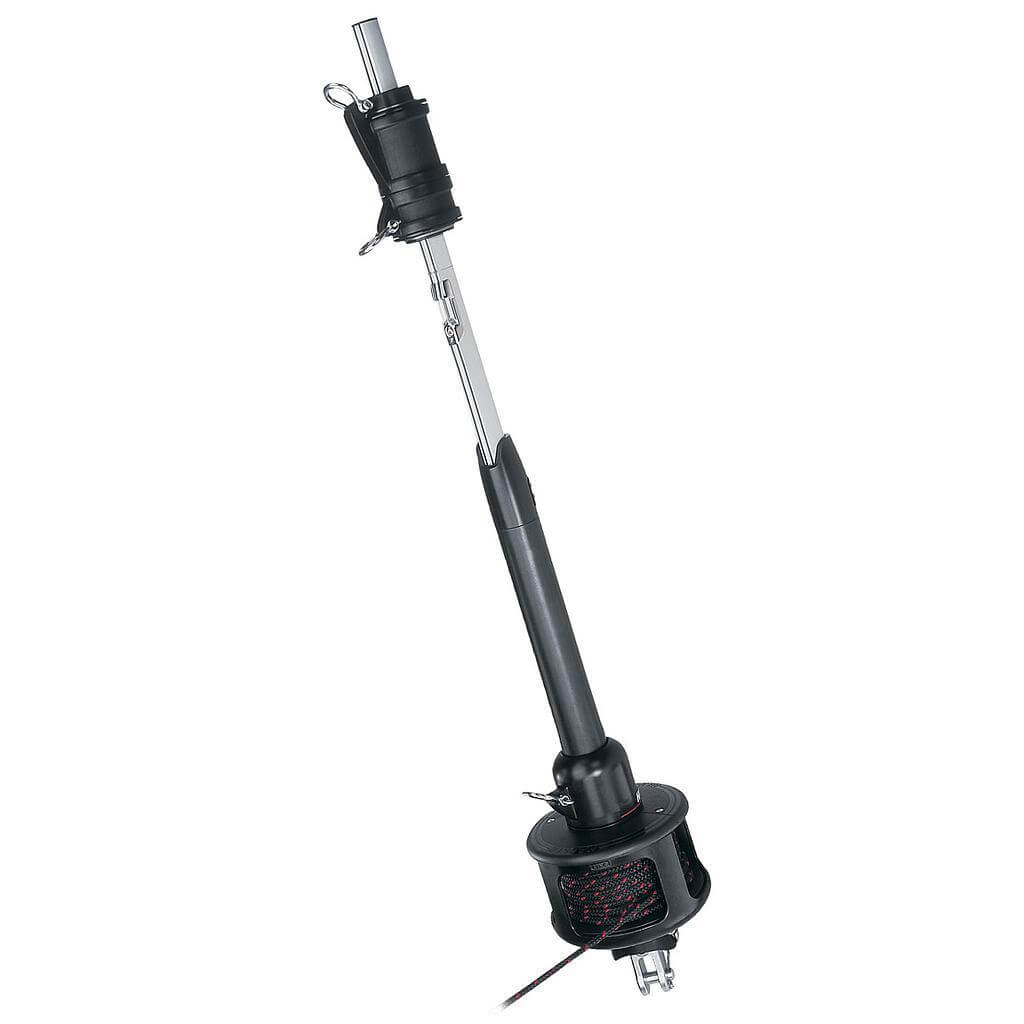

Specifications for Harken MKIV Unit 1 Sistema avvolgifiocco
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 28 |
| Dimensions | |
| A (mm) | 120 |
| B (mm) | 178 |
| C (mm) | 51 |
| D (mm) | 167 |
| E (mm) | 78 |
| F (mm) | 1073 - 1175 |
| G (mm) | 247 - 305 |
| H (mm) | 222 - 280 |
| I (mm) | 71 - 129 |
| J (mm) | 25 |
| K (mm) | 29 |
| Ø tamburo (mm) | 167 |
| Ø perno (mm) | 15.9 |
| Ø cavo metallico Max (mm) | 8 |
| Furling | |
| Lunghezza estrusione (mm) | 2130 |
| Ø estrusione (mm) | 25 |
| Riferimento estrusione | 7411.30 |
| Peso estrusione (g/m) | 515 |
| Lunghezza strallo Max (mm) | 16120 |
| Lunghezza strallo Std. (mm) | 13990 |
| Canaletta ralinga (Singola/Doppia) | Doppia canaletta d’inferitura |
| Ø ralinga (mm) | 5 |
| Rigging | |
| Dimensione asta DASH Max | -12 |
| Ø stelo Max (mm) | 7.14 |
| Weight | |
| Peso (g) | 13608 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Harken MKIV, MKIC Ocean & MKIV Underdeck Range.pdf
Harken Catalogue for the MKIV, MKIV Ocean and MKIV Underdeck Ranges.
|
|
|
|
MKIV Unit 1_ES.pdf
Español Enrollador de foque Manual de instalación para H-7411.10 (Unidad 1)
|
|
|
|
MKIV Unit 1_FR.pdf
Français Enroulement et réduction de foc pour croisière Manuel d'installation pour H-7411.10 (Unit 1)
|
|
|
|
MKIV Unit 1_DE.pdf
Deutsche Fock Reffen & Rollen Installations Handbuch für H-7411.10 (Unit 1)
|
|
|
|
MKIV Unit 1_EN.pdf
English Jib Reefing and Furling Installation Manual for H-7411.10 (Unit 1)
|
|
|
|
Harken_MKIV_JibFurler_catalogue_2020_EN.pdf
|
