Specifications for Facnor Bozzello apribile LB03T - Puleggia 45mm
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 12 |
| Boat | |
| Load | |
| SWL (kg) | 3000 |
| Dimensions | |
| A (mm) | 12 |
| B (mm) | 64 |
| C (mm) | 46 |
| Ø puleggia (mm) | 45 |
| Weight | |
| Peso (g) | 141 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

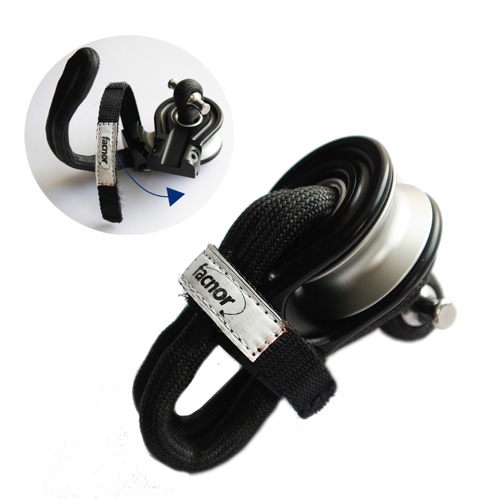

Facnor Snatch Block LB03T - 45mm Sheave
Light & compact
- Sleek design , CNC machined aluminium cheeks and sheaves
- Maintenance-free composite/polymer bearings reduce corrosion
- Lightweight Dyneema® shackle, velcro® attachment
- Use with an FX+2500 swivel in the case of halyard pulleys for Gennakers & Code sails
- Many other possible applications (e.g. main halyard, deck padeye)
- LB03T withstands 3T maximum working load
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 3000 |
| Dimensions | |
|---|---|
| A (mm) | 12 |
| B (mm) | 64 |
| C (mm) | 46 |
| Ø puleggia (mm) | 45 |
| Weight | |
|---|---|
| Peso (g) | 141 |
