Specifications for Bamar BTM tenditore sartia a manovella ø12
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 7000 |
| NBL (kg) | 14000 |
| Dimensions | |
| A (mm) | 89 |
| B Max (mm) | 950 |
| B Min (mm) | 650 |
| C (mm) | 35 |
| D (mm) | 20 |
| Ø perno (mm) | 19 |
| Corsa (mm) | 300 |
| Ø cavo metallico (mm) | 12 |
| Rigging | |
| Dimensione asta DASH | -22 |
| Undefined | |
| Taglia | 12 |
| Weight | |
| Peso (g) | 7500 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

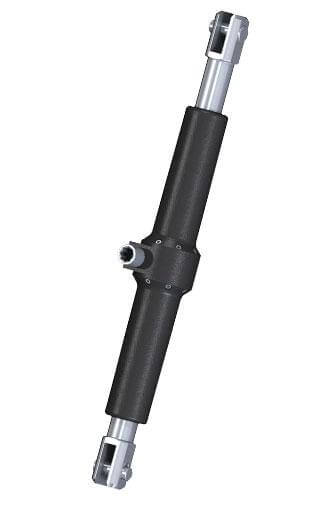

BTM winch handle stay tensioners are available in several sizes. They are made for either 1x19 wire stays from Ø 8 to 22 mm or rod equivalent. The mechanism can be operated by means of a standard winch handle thanks to an octagonal clutch.
BTM stay tensioners body is manufactured in black HARDCOTE anodized aluminum; whereas studs and forks are made in s.s.. Double extension studs allow for a longer stroke compared to comparable products. Furthermore, we may supply a range of quick release pins for either inner forestay tensioners or standing rigging that need to be "running" with a simple operation.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 7000 |
| NBL (kg) | 14000 |
| Dimensions | |
|---|---|
| A (mm) | 89 |
| B Max (mm) | 950 |
| B Min (mm) | 650 |
| C (mm) | 35 |
| D (mm) | 20 |
| Ø perno (mm) | 19 |
| Corsa (mm) | 300 |
| Ø cavo metallico (mm) | 12 |
| Rigging | |
|---|---|
| Dimensione asta DASH | -22 |
| Undefined | |
|---|---|
| Taglia | 12 |
| Weight | |
|---|---|
| Peso (g) | 7500 |
