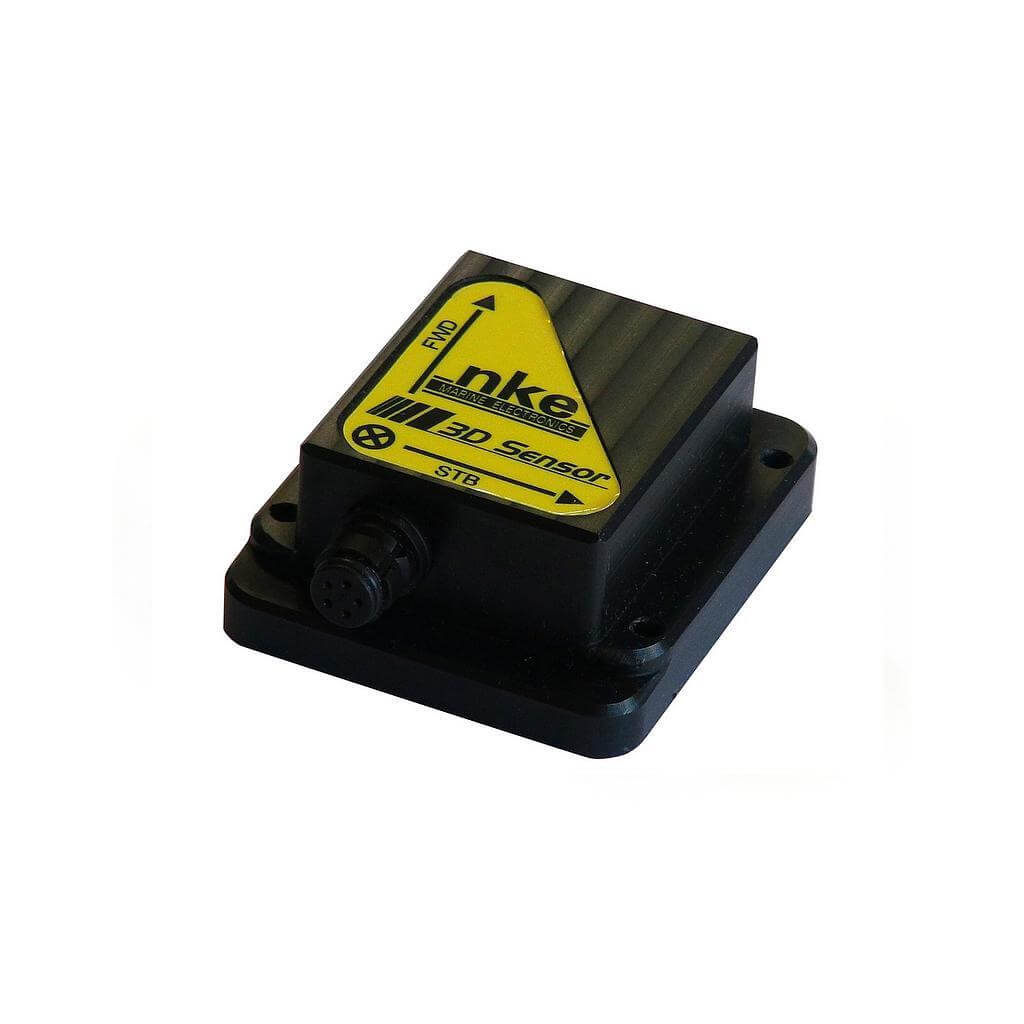

The 3D Sensor is a highly accurate inertial measurement unit that allows the boat’s movement and orientation to be measured. It provides accurate heading, roll and pitch, acceleration and turn rate. It is connected to the Processor HR or Processor Regatta.
Twelve data fields are processed continuously in real time: - 3 for acceleration - 3 for turn rate - 3 for magnetic field - 3 movements measured (spatial orientation: pitch roll and turn)
It is supplied as part of the Regatta GP package.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Electrics | |
|---|---|
| Tension de fonctionnement | 4,5-15 |
| Consommation (mA) | 30 |
| Résistant à l'eau | IP67 |
| Boat |
|---|
| Dimensions | |
|---|---|
| Profondeur totale (mm) | 39 |
| Hauteur totale (mm) | 56 |
| Largeur totale (mm) | 110 |
| Weight | |
|---|---|
| Poids (g) | 200 |
| Garantie (année) | 2 |
