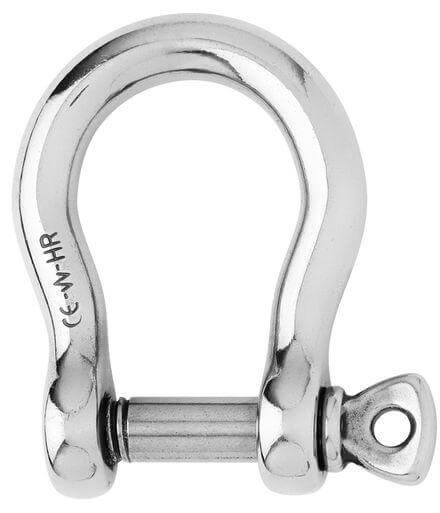

Specifications for Manille lyre HR Wichard - Ø 10 mm
| Boat | |
|---|---|
| Load | |
| Charge de travail (kg) | 2640 |
| Charge de rupture (kg) | 6000 |
| Dimensions | |
| A (mm) | 47 |
| B (mm) | 22 |
| C (mm) | 10 |
| D (mm) | 20 |
| E (mm) | 9 |
| M (mm) | 52 |
| Ø axe (mm) | 10 |
| Material | |
| Matériau | Acier inoxydable |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
| Poids (g) | 136 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
