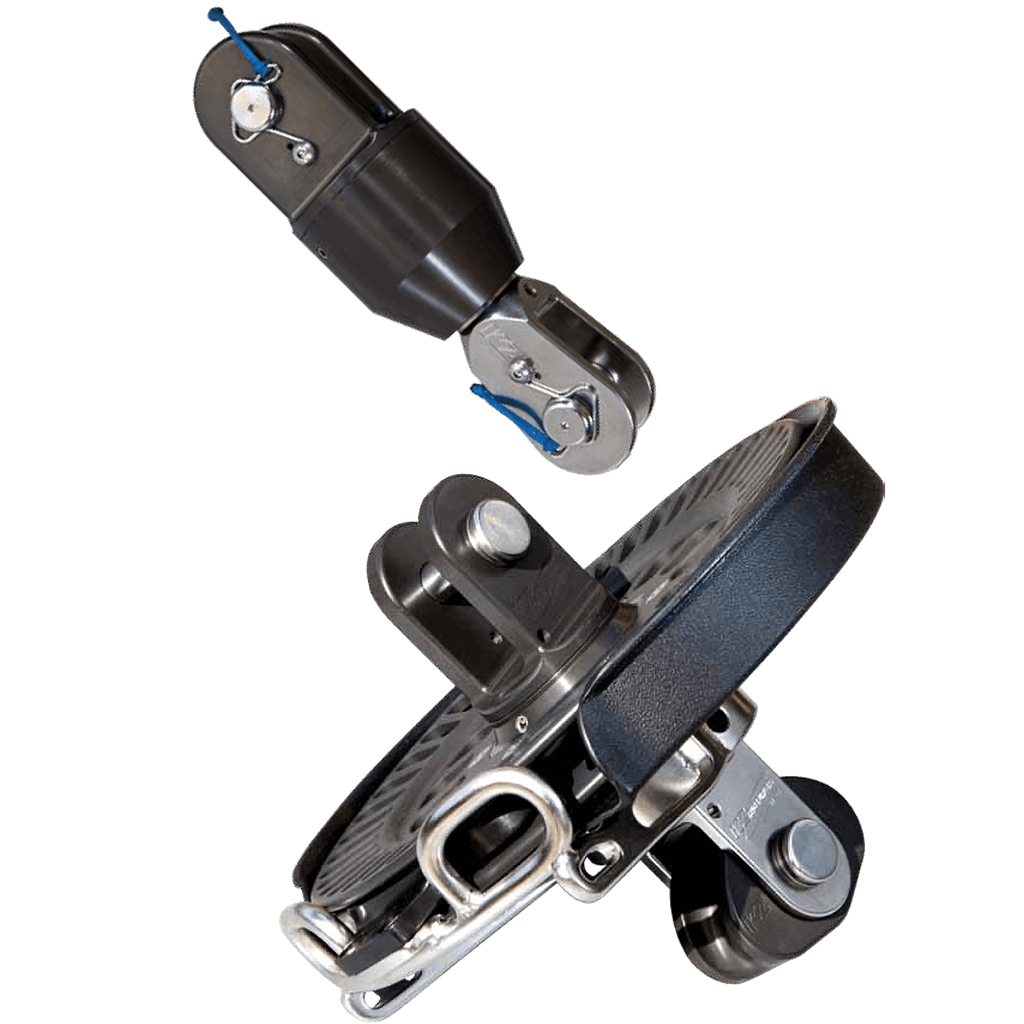

KZ Racefurlers are world renowned for performance and reliability. With the unique modular approach, each furler size can be adapted to suit the specific application.
Each furler is available with a choice of forks on top and various fittings for below the drum, such as Wichard or Tylaska shackles, 2:1 or 3:1 purchase. Similar options are available for the top swivels.
We have grouped the furlers to have the same jaw width between the drum and swivel for simplicity of matching to a torsional cable. Options for below the drum and above the swivel can be chosen via the selection buttons.
Please refer to the relevant technical drawing for all properties.
The Offshore range has been designed to withstand the toughest conditions and has been tried and tested over the years by many offshore racing programmes.
Spécifications
| Boat |
|---|
| Load | |
|---|---|
| Charge de travail (kg) | 4000 |
| Charge de rupture (kg) | 7200 |
| Dimensions | |
|---|---|
| Ø axe de la chape (mm) | 12,7 |
| Largeur de chape (mm) | 16 |
| Furling | |
|---|---|
| Swivel Upper fitting* | N2 - 16mm Jaw ou N3 - 19mm Jaw ou SN01 - Lashing Eye |
| Drum Upper fitting | N2 - chape 16 mm |
| Swivel Lower fitting | F2 - Chape 16 mm |
| Undefined | |
|---|---|
| Drum Lower fitting* | E1 - Œil ou F2 - Chape 16 mm ou F306 - Chape 19 mm avec poulie 2:1 ou TA20 - Mousqueton à largage rapide Tylaska (Trigger) |
