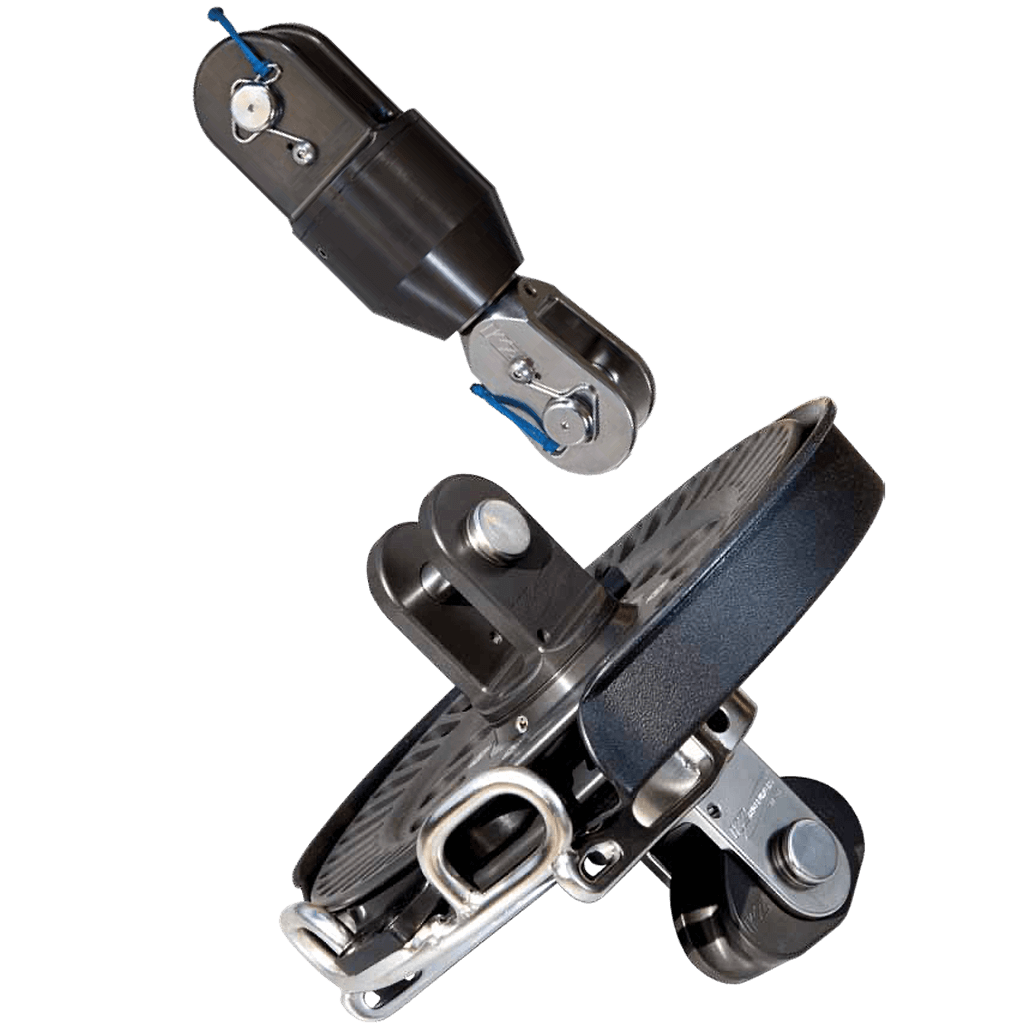

KZ Racefurlers are world renowned for performance and reliability. With the unique modular approach, each furler size can be adapted to suit the specific application.
Each furler is available with a choice of forks on top and various fittings for below the drum, such as Wichard or Tylaska shackles, 2:1 or 3:1 purchase. Similar options are available for the top swivels.
We have grouped the furlers to have the same jaw width between the drum and swivel for simplicity of matching to a torsional cable. Options for below the drum and above the swivel can be chosen via the selection buttons.
Please refer to the relevant technical drawing for all properties.
The Offshore range has been designed to withstand the toughest conditions and has been tried and tested over the years by many offshore racing programmes.
Especificaciones
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 4000 |
| NBL (kg) | 7200 |
| Dimensions | |
|---|---|
| Ø del pasador de horquilla (mm) | 12.7 |
| Ancho de horquilla (mm) | 16 |
| Furling | |
|---|---|
| Herraje superior giratorio* | N2 - 16mm Jaw o N3 - 19mm Jaw o SN01 - Lashing Eye |
| Herraje superior del tambor | N2 - 16mm Jaw |
| Herraje inferior giratorio | F2 - 16mm Jaw |
| Undefined | |
|---|---|
| Herraje inferior del tambor* | E1 - Eye o F2 - 16mm Jaw o F306 - 19mm Jaw with 2:1 Sheave o TA20 - Tylaska Trigger Snap Shackle |
