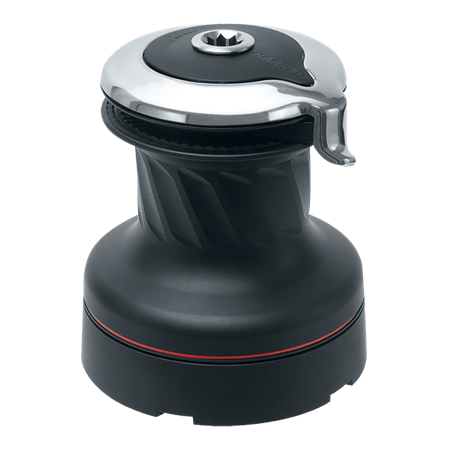

Specifications for Harken 70 2 vitesses S/T Radial AL Winch
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 18 |
| Cordage recommandé – Ø Min (mm) | 10 |
| Boat | |
| Style | Auto-coinceur |
| Load | |
| Charge de travail (kg) | 2700 |
| Dimensions | |
| A (mm) | 130 |
| B (mm) | 240 |
| C (mm) | 256 |
| D (mm) | 115 |
| Diamètre de l'embase | 240 |
| Ø tourelle (mm) | 130 |
| Hauteur (mm) | 256 |
| Hauteur d’entrée du cordage (mm) | 115 |
| Winches | |
| Vitesse 1 (X : 1) | 5,7 |
| Vitesse 2 (X : 1) | 18,5 |
| Vitesse (manuelle) | 2 vitesses |
| Puissance 1 (X : 1) | 22,2 |
| Puissance 2 (X : 1) | 72 |
| Material | |
| Matériau | Aluminium |
| Undefined | |
| Taille | 70 |
| Weight | |
| Poids (g) | 11300 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
