Specifications for Guide-écoute de mât Antal pour cordages 10mm
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 10 |
| Boat | |
| Dimensions | |
| D (mm) | 30 |
| d (mm) | 14 |
| H (mm) | 10 |
| Fixing hole Ø (mm) | 5 |
| Length (mm) | 50 |
| Weight | |
| Poids (g) | 39 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

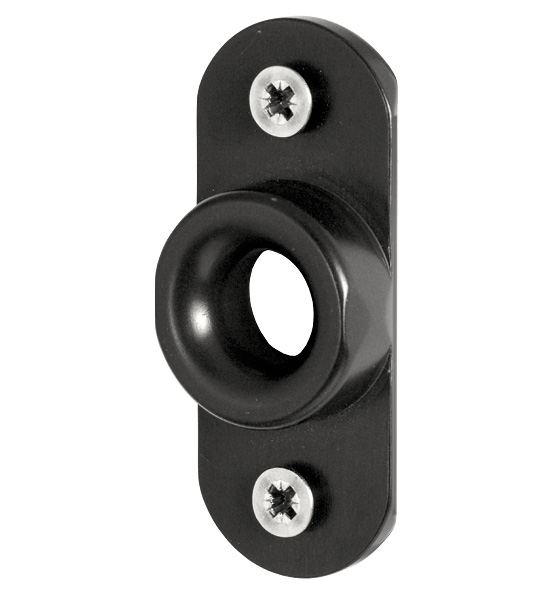

Antal Mast Fairlead for 10mm Lines
This low friction fairlead is suitable for mounting on mast, boom and thin wall with no access from behind. Aluminium made, hard black anodized and highly polished to guarantee minimum friction. 3 sizes with 14, 16 and 18 mm holes for lines up to 10, 12 and 14 mm max. Just drill a hole of appropriate size (30, 35 or 40 mm for the different models) insert the fairlead into this hole and fix it with two screws (included).
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 10 |
| Boat |
|---|
| Dimensions | |
|---|---|
| D (mm) | 30 |
| d (mm) | 14 |
| H (mm) | 10 |
| Fixing hole Ø (mm) | 5 |
| Length (mm) | 50 |
| Weight | |
|---|---|
| Poids (g) | 39 |
