Off-Season Deal

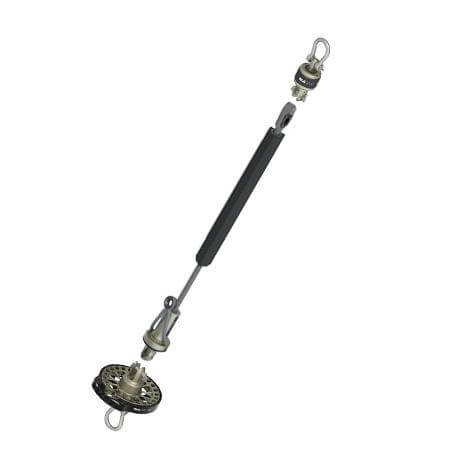

Bamar RLG-CODE EVO 08 Set Top-Down - Tambour, Émerillon & Câble anti-torsion
MPN:
N/A
Marque:
Bamar
Specifications for Bamar RLG-CODE EVO 08 Set Top-Down - Tambour, Émerillon & Câble anti-torsion
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 8 |
| Boat | |
| Taille bâteau recommandée - Max (ft) | 50 |
| Taille bâteau recommandée - Min (ft) | 45 |
| Max Gennaker/Code 0 sail area, monohulls (m²) | 95 |
| Load | |
| Charge de travail (kg) | 2000 |
| Charge de rupture (kg) | 4000 |
| Dimensions | |
| A (mm) | 8 |
| B (mm) | 13 |
| C (mm) | 78 |
| D (mm) | 45 |
| E (mm) | 110 |
| F (mm) | 91 |
| G (mm) | 13 |
| H (mm) | 28 |
| Ø tourelle (mm) | 110 |
| Ø axe de la chape (mm) | 8 |
| Largeur de chape (mm) | 13 |
| Stay Length Max (M) | 15 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
