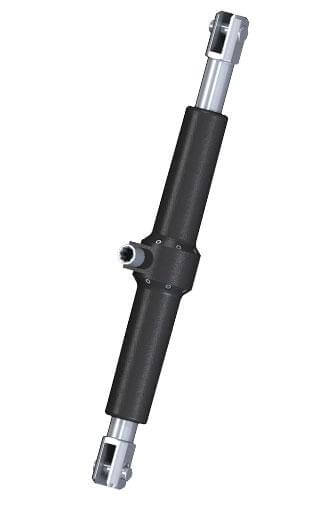

Specifications for Bamar BTM tendeur d’étai à manivelle ø14
| Boat | |
|---|---|
| Load | |
| Charge de travail (kg) | 8500 |
| Charge de rupture (kg) | 17000 |
| Dimensions | |
| A (mm) | 89 |
| B Max (mm) | 1170 |
| B Min (mm) | 770 |
| C (mm) | 47 |
| D (mm) | 22,5 |
| Ø axe (mm) | 22 |
| Amplitude de mouvement (mm) | 400 |
| Ø cable (mm) | 14 |
| Rigging | |
| Ø de la tige en Rod (mm) | 11,1 |
| Undefined | |
| Taille | 14 |
| Weight | |
| Poids (g) | 9800 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
