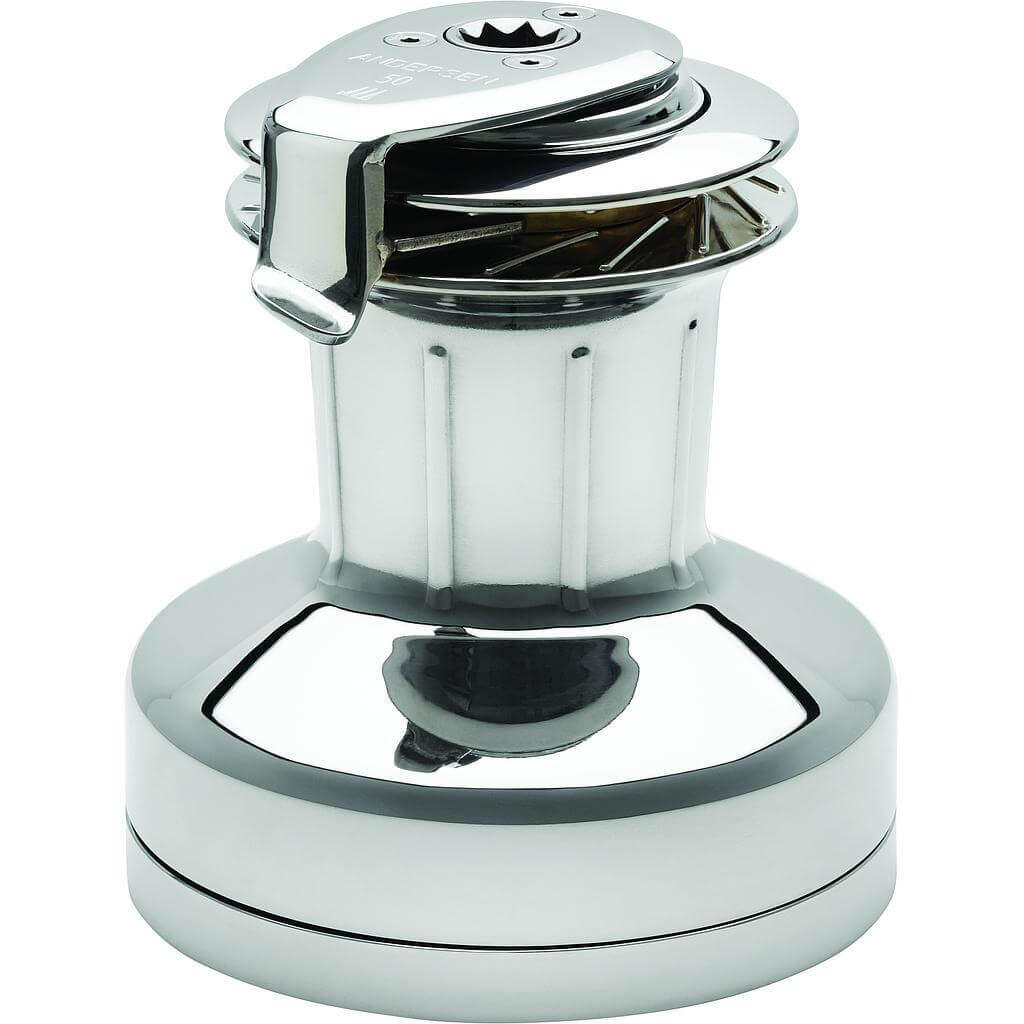

Specifications for Andersen 50 winch auto-bloqueur inox 2 vitesses
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 14 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Boat | |
| Style | Auto-coinceur |
| Dimensions | |
| A (mm) | 89 |
| B (mm) | 180 |
| C (mm) | 202 |
| D (mm) | 90 |
| Diamètre de l'embase | 180 |
| Ø tourelle (mm) | 89 |
| Hauteur (mm) | 202 |
| Hauteur d’entrée du cordage (mm) | 90 |
| Winches | |
| Vitesse 1 (X : 1) | 2,8 |
| Vitesse 2 (X : 1) | 8,8 |
| Vitesse (manuelle) | 2 vitesses |
| Puissance 1 (X : 1) | 15,7 |
| Puissance 2 (X : 1) | 49,3 |
| Material | |
| Matériau | Acier inoxydable |
| Undefined | |
| Taille | 50 |
| Weight | |
| Poids (g) | 7800 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 46ST v5.0 _ 46ST FS v5.0.F _ 50ST v.2.0 _ 50ST FS v.2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 46 _ 50 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
