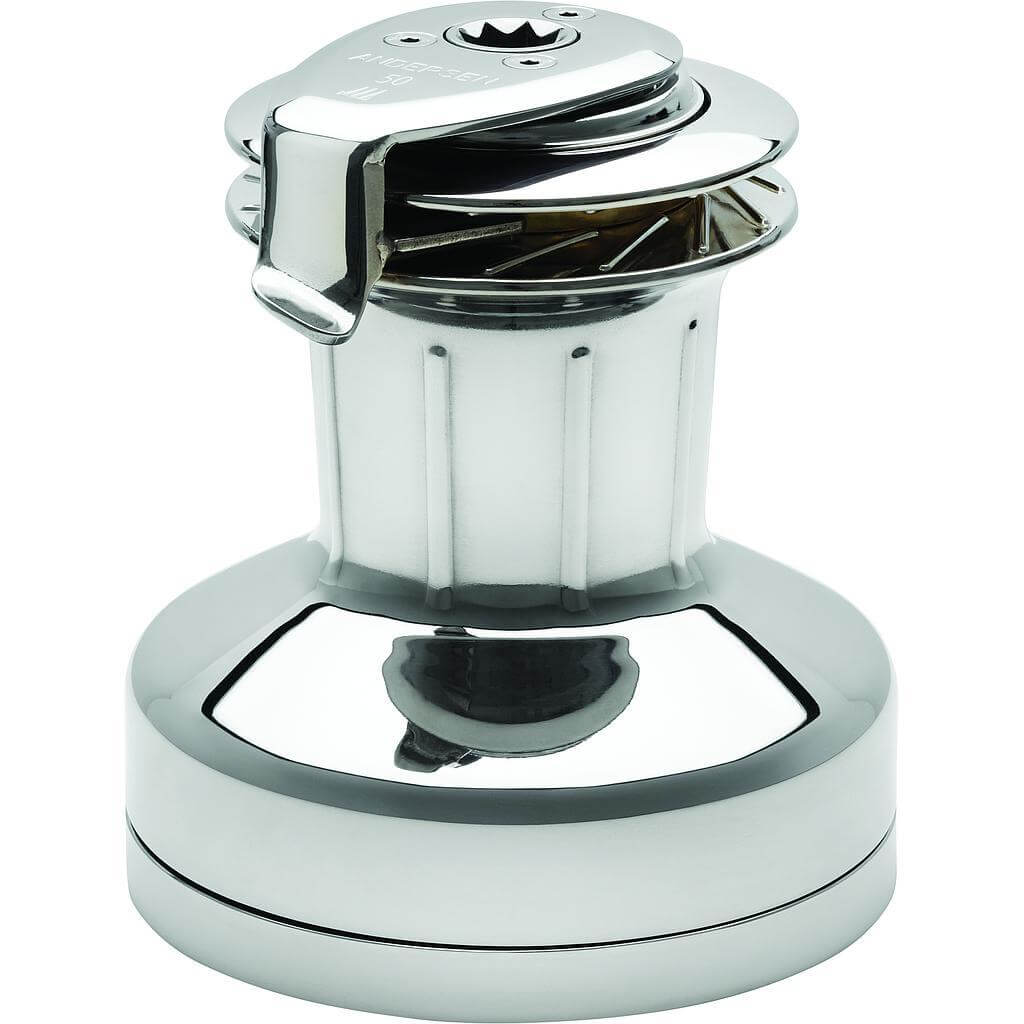

Specifications for Andersen 50 winch inox autovirante 2 velocità
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 14 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
| Stile | Autostoppante |
| Dimensions | |
| A (mm) | 89 |
| B (mm) | 180 |
| C (mm) | 202 |
| D (mm) | 90 |
| Ø base (mm) | 180 |
| Ø tamburo (mm) | 89 |
| Altezza (mm) | 202 |
| Altezza ingresso cima (mm) | 90 |
| Winches | |
| Rapporto ingranaggi 1 (X : 1) | 2.8 |
| Rapporto ingranaggi 2 (X : 1) | 8.8 |
| Marce (manuale) | 2 velocità |
| Rapporto potenza 1 (X : 1) | 15.7 |
| Rapporto potenza 2 (X : 1) | 49.3 |
| Material | |
| Materiale | Acciaio inox |
| Undefined | |
| Taglia | 50 |
| Weight | |
| Peso (g) | 7800 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 46ST v5.0 _ 46ST FS v5.0.F _ 50ST v.2.0 _ 50ST FS v.2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 46 _ 50 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
Full Stainless Self-Tailing winch featuring the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. Andersen's exclusive self-tailing mechanism automatically accommodates a wide range of different sheet and halyard sizes allowing each winch to serve numerous onboard purposes. The drive shaft stripper arm, self-tailing jaws, drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 stainless steel resulting in a stunning, highly reflective winch.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 14 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
|---|---|
| Stile | Autostoppante |
| Dimensions | |
|---|---|
| A (mm) | 89 |
| B (mm) | 180 |
| C (mm) | 202 |
| D (mm) | 90 |
| Ø base (mm) | 180 |
| Ø tamburo (mm) | 89 |
| Altezza (mm) | 202 |
| Altezza ingresso cima (mm) | 90 |
| Winches | |
|---|---|
| Rapporto ingranaggi 1 (X : 1) | 2.8 |
| Rapporto ingranaggi 2 (X : 1) | 8.8 |
| Marce (manuale) | 2 velocità |
| Rapporto potenza 1 (X : 1) | 15.7 |
| Rapporto potenza 2 (X : 1) | 49.3 |
| Material | |
|---|---|
| Materiale | Acciaio inox |
| Undefined | |
|---|---|
| Taglia | 50 |
| Weight | |
|---|---|
| Peso (g) | 7800 |
