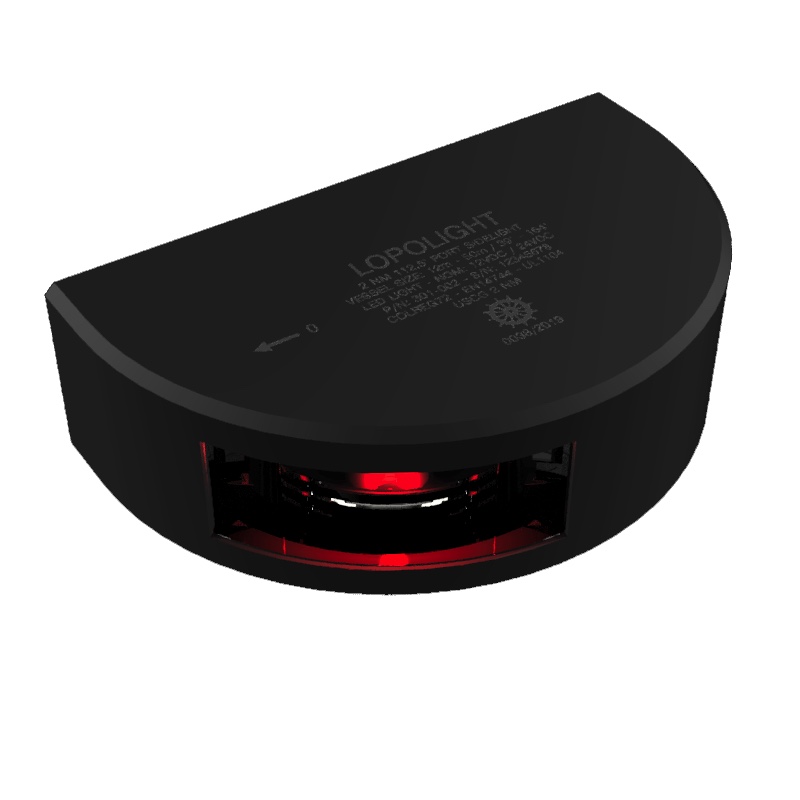

Lopolight 2nm 112.5° luz de costado de babor, montaje vertical w/cable de 6 metros

https://www.upffront.com/web/image/product.template/102401/image_1920?unique=de6a61f

360,73 360.73 USD 360,73

309,85 €

0% Descuento

No está disponible para venta

Días
:
Horas
:
Mins
:
Secs
  • Tensión de funcionamiento (V)
  • Tipo de alimentación
  • Consumo de corriente (mA @ 12VCC)
  • Consumo de corriente (mA @ 24VCC)
  • Potencia (W)
  • Homologado según
  • Color de la luz
  • Tipo de luz
  • Intensidad luminosa (cd)
  • Temperatura de funcionamiento
  • Visibilidad (NM)
  • Resistencia al agua
  • Marca
  • Eslora (m)
  • Tipo de embarcación
  • Dimensiones (mm)
  • Calibre de cable de alimentación Mín
  • Material
  • Color*
  • Conexión
  • Montaje
  • Peso (g)
  • Garantía (años)

Esta combinación no existe.

Product Image

Lopolight 2nm 112.5° luz de costado de babor, montaje vertical w/cable de 6 metros

360,73 360,73
0% Off
SKU:
N/A
Shipping Info

Devolución de dinero en 30 días

 14-días para devoluciones

 Envío rápido disponible

Compartir :

Lopolight 2NM 112.5° Port Sidelight – Vertical Mount, 6m Cable (Silver or Black Anodised)

[For vessels under 20m – LED navigation light]


The Lopolight 2NM Port Sidelight with 6-metre cable is designed for vessels under 20 metres requiring extended wiring runs or taller superstructures. Emitting a precise 112.5° red beam visible to 2 nautical miles, it delivers consistent, compliant portside visibility for safe navigation.

Machined from anodised aluminium, this model is offered in Silver or Black finishes to match vessel aesthetics. The vertical-mount design is compact, making it ideal for installation on hull sides, pulpits, or narrow deck locations. Rated IP68, with epoxy-sealed electronics, the unit is built for long-term resistance to saltwater, vibration, and UV exposure.

The 6-metre marine-grade cable provides installation flexibility for longer routing paths or retrofit projects.

Key Features:

  • Suitable for vessels under 20 metres
  • 112.5° red beam, visible to 2NM
  • Vertical mount – compact and space-efficient
  • Available in Silver or Black anodised aluminium housing
  • IP68 sealed with epoxy-filled electronics for marine durability
  • Supplied with 6m marine-grade cable for extended routing
  • Low power draw – ~2 W at 10–32 V
  • Fully compliant with COLREG72, EN14744, and USCG standards
  • Alternative version available with 2.5m cable connection

Especificaciones

Electrics
Tensión de funcionamiento (V) 10-32
Tipo de alimentación dc.
Consumo de corriente (mA @ 12VCC) 90
Consumo de corriente (mA @ 24VCC) 50
Potencia (W) 1.2
Homologado según COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Intensidad luminosa (cd) >5.4
Temperatura de funcionamiento -25°C to 55°C
Visibilidad (NM) 2
Resistencia al agua IP68
Boat
Eslora (m) Under 12M o 12-20M o 20-50M
Dimensions
Dimensiones (mm) 92,5 x 28 x 49,7
Rigging
Calibre de cable de alimentación Mín 0.5mm2 AWG22
Material
Material Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane o Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Undefined
Color* Black o Silver
Compatibility
Conexión 6m cable
Weight
Peso (g) 630
Garantía (años) 5 year limited warranty
