Specifications for Grillete de driza UBI Maior - SWL 2.5T
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Boat | |
| Load | |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| Dimensions | |
| A (mm) | 24 |
| B (mm) | 28 |
| Ø del pasador (mm) | 10 |
| Material | |
| Material | Aluminium |
| Grado del material | 6082-T6 |
| Weight | |
| Peso (g) | 93 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

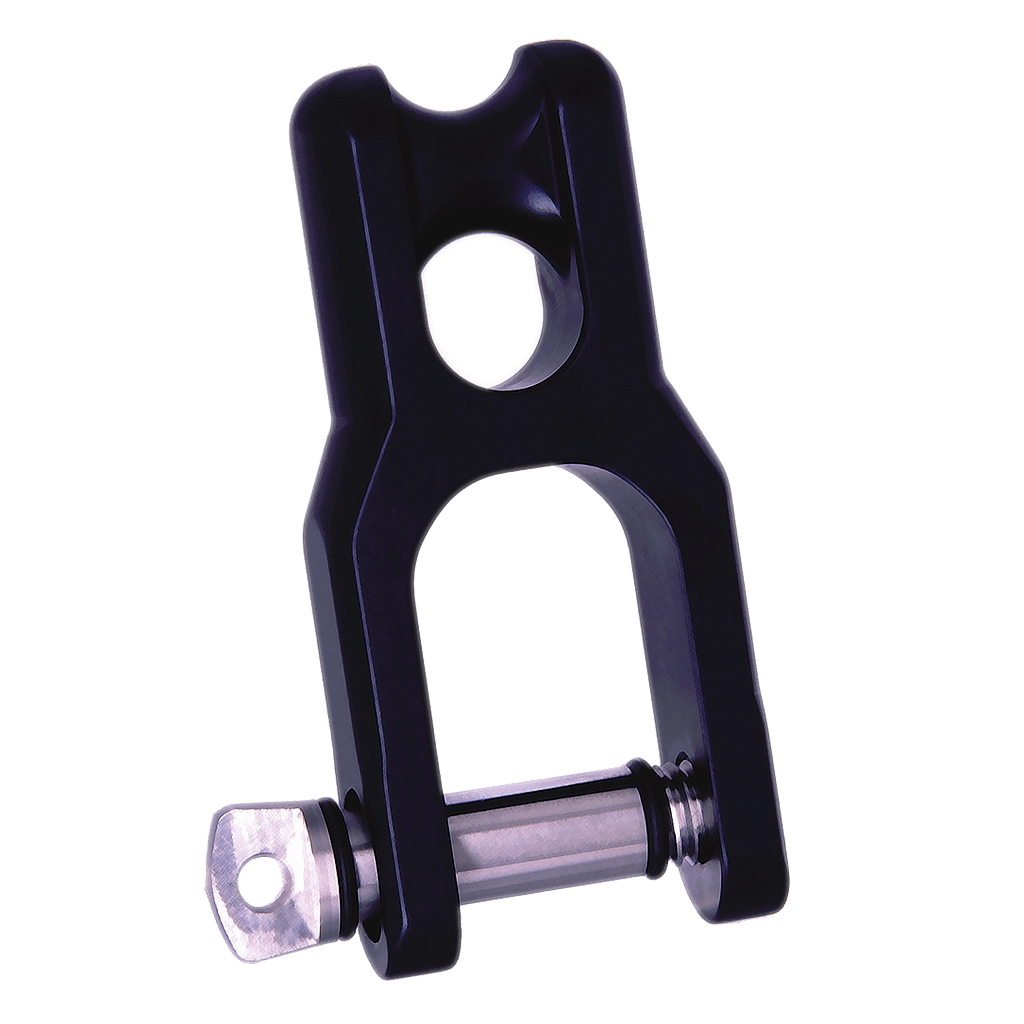

These shackle connectors from Uni Maior are designed to be used on the halyard either as a 1:1 or 2:1. When used as a 1:1 system the halyard would be attached to the eye of the shackle, preferable as an eye splice; when used as a 2:1 system the eye of the shackle becomes a low friction sheave. The main body is built in aluminium (grade: 6082T6) with a stainless steel pin.
