Specifications for Antal Soft Attach Pad Eye para cabo de 10mm
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Boat | |
| Estilo | Fixed |
| Load | |
| SWL (kg) | 3500 |
| Dimensions | |
| D (mm) | 16 |
| Ø del orificio de fijación (mm) | 10 |
| Altura (mm) | 34 |
| Longitud (mm) | 93 |
| Ancho (mm) | 74 |
| Material | |
| Material | Aluminium |
| Compatibility | |
| Número de orificios de fijación | 3 |
| Weight | |
| Peso (g) | 180 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Antal Soft Attach Pad Eye for 10mm Line
The Antal Soft Attach Pad Eye for 10mm Line delivers secure and efficient soft attachments with a Safe Working Load (SWL) of 3,500 kg, making it suitable for high-load applications on larger yachts. It is designed for use with textile loops, lashings, and strops, combining strength with minimal weight.
The pad eye is machined from aluminium with a hard anodised finish for durability and corrosion resistance. Smooth, rounded edges prevent rope chafe, while the recessed central groove keeps lashings properly aligned.
Two versions are available:

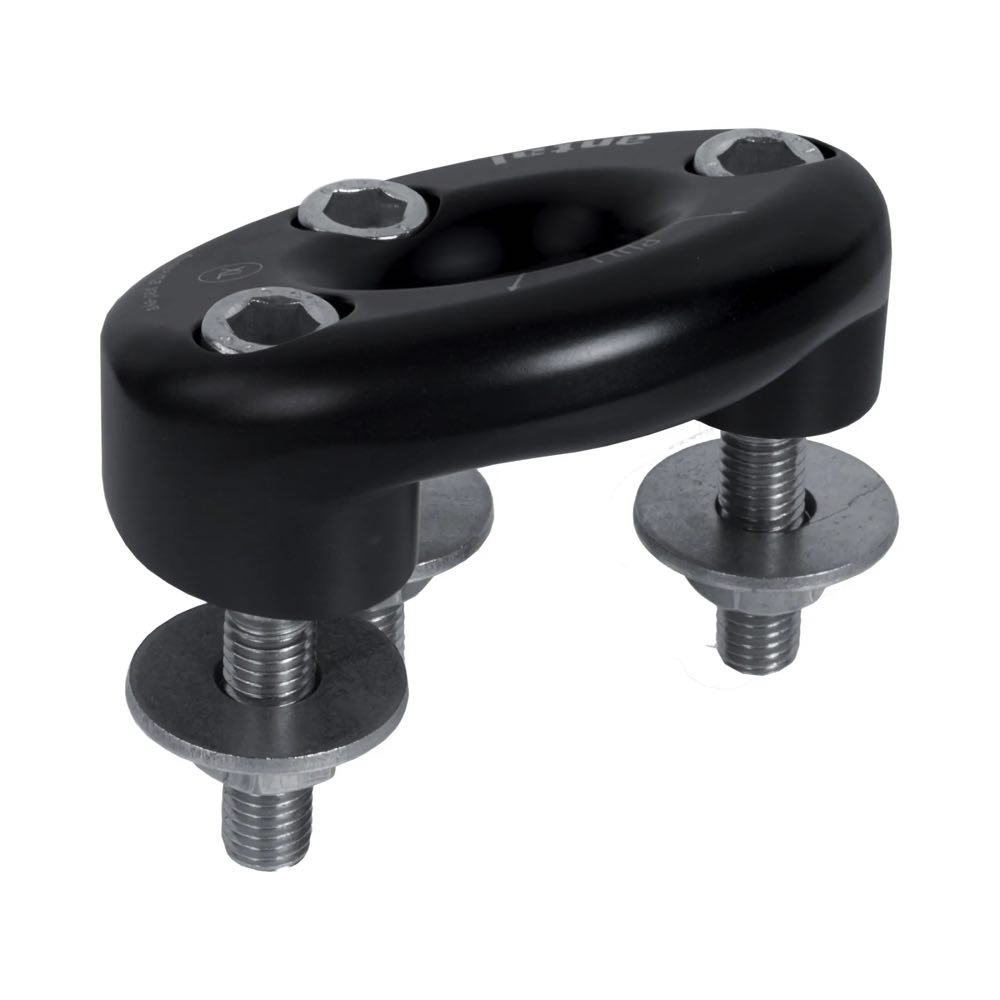

- Screw/Bolt Fixing – countersunk fasteners visible from above.
- Stud Fixing – threaded studs integrated into the base, secured from below for a flush, snag-free top profile.
Features:
- Designed for 10mm lines
- Safe Working Load (SWL): 3,500 kg
- High-strength anodised aluminium construction
- Rounded edges and recessed groove for rope protection
- Two fixing options: screws/bolts or integrated studs
- Lightweight, robust, and maintenance-free
Applications:
- Heavy-duty control lines, blocks, or lashings
- Suitable for deck, mast, and boom attachment points
- Perfect for performance yachts seeking low-profile soft fittings
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Boat | |
|---|---|
| Estilo | Fixed |
| Load | |
|---|---|
| SWL (kg) | 3500 |
| Dimensions | |
|---|---|
| D (mm) | 16 |
| Ø del orificio de fijación (mm) | 10 |
| Altura (mm) | 34 |
| Longitud (mm) | 93 |
| Ancho (mm) | 74 |
| Material | |
|---|---|
| Material | Aluminium |
| Compatibility | |
|---|---|
| Número de orificios de fijación | 3 |
| Weight | |
|---|---|
| Peso (g) | 180 |
