Antal Soft Attach Pad Eye for 10mm Line
The Antal Soft Attach Pad Eye for 10mm Line delivers secure and efficient soft attachments with a Safe Working Load (SWL) of 3,500 kg, making it suitable for high-load applications on larger yachts. It is designed for use with textile loops, lashings, and strops, combining strength with minimal weight.
The pad eye is machined from aluminium with a hard anodised finish for durability and corrosion resistance. Smooth, rounded edges prevent rope chafe, while the recessed central groove keeps lashings properly aligned.
Two versions are available:
-

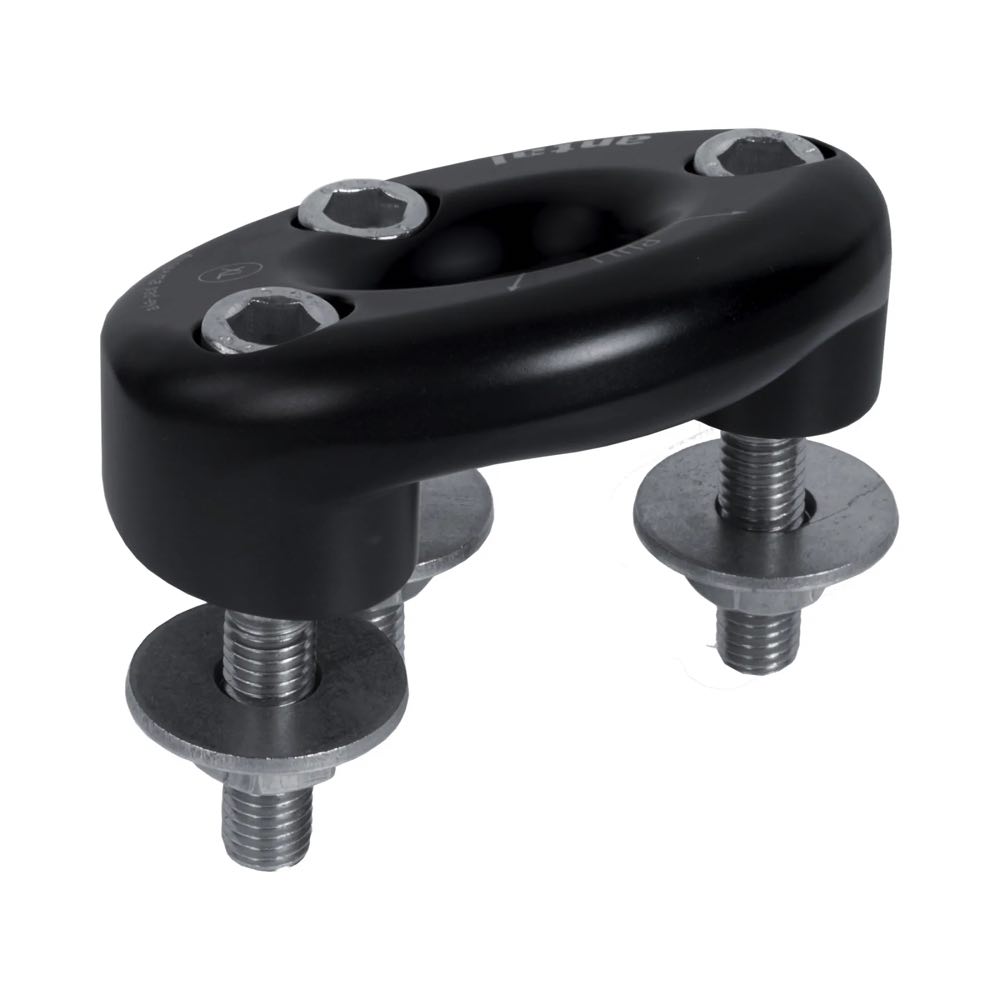

Screw/Bolt Fixing – countersunk fasteners visible from above.
-
Stud Fixing – threaded studs integrated into the base, secured from below for a flush, snag-free top profile.
Features:
-
Designed for 10mm lines
-
Safe Working Load (SWL): 3,500 kg
-
High-strength anodised aluminium construction
-
Rounded edges and recessed groove for rope protection
-
Two fixing options: screws/bolts or integrated studs
-
Lightweight, robust, and maintenance-free
Applications:
-
Heavy-duty control lines, blocks, or lashings
-
Suitable for deck, mast, and boom attachment points
-
Perfect for performance yachts seeking low-profile soft fittings
