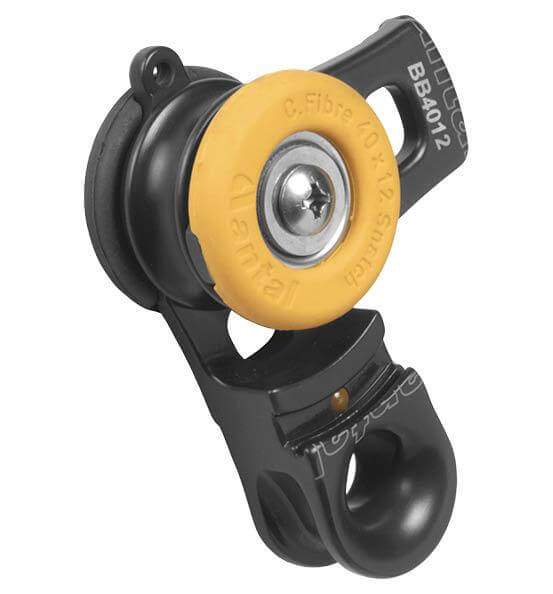

The Antal Barber Block is a snatch block with a “ring” head, it provides an immediate entry of the sheet (the cheek plate revolves around the sheave axle allowing the block to open) and an easy 2:1 control (a line through the ring allows the control of the block height). A safety ball prevents the revolving from accidental opening and an adjustable screw can set the ball in fully locked position. A small becket to attach a line for hanging the block is present. Rubber covers to protect the deck from bumps. Aluminium sheave with composite fibre bushing and two side ball bearings.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1300 |
| Blocks | |
|---|---|
| Tipo de rodamiento | - |
| Material de la roldana | Aluminium |
| Material de las placas laterales | Aluminium |
| Carraca | No |
| Dimensions | |
|---|---|
| Ø de roldana (mm) | 40 |
| Compatibility |
|---|
| Weight | |
|---|---|
| Peso (g) | 160 |
