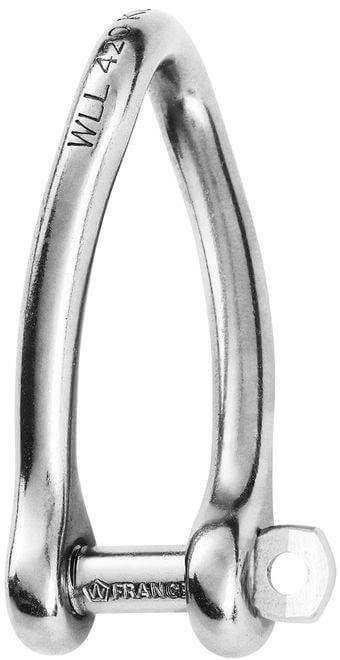

Specifications for Wichard Gedrehter Schäkel mit gefangenem Bolzen - Ø 6 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 600 |
| NBL (kg) | 2100 |
| Dimensions | |
| A (mm) | 44 |
| B (mm) | 12 |
| C (mm) | 7 |
| D (mm) | 14 |
| E (mm) | 6 |
| F (mm) | 60 |
| G (mm) | 31 |
| Pin Ø (mm) | 7 |
| Material | |
| Material | Edelstahl |
| Material Grade | AISI 316L |
| Weight | |
| Gewicht (g) | 39 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
