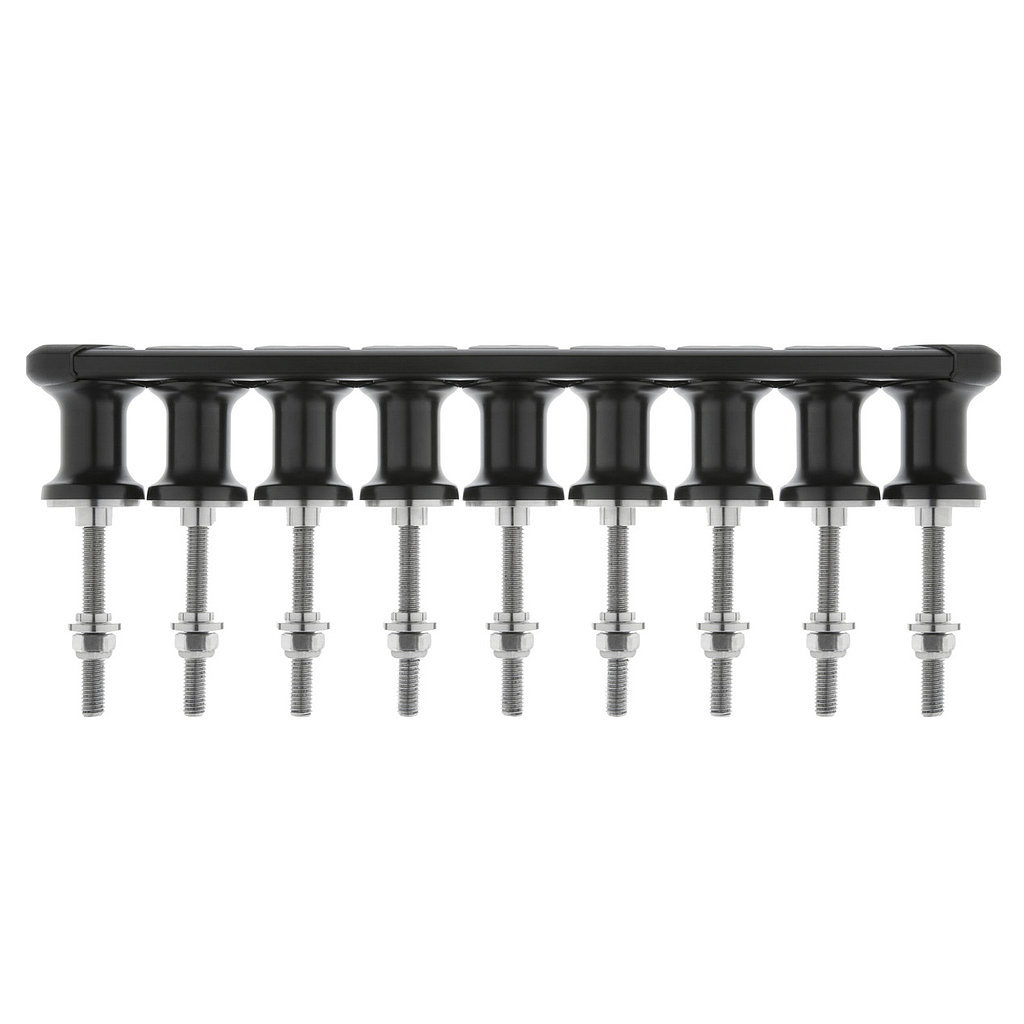

Spinlock TSR30 – 9 Sheave Organiser (Standard and Low Profile)
The Spinlock TSR30 9 Sheave Organiser supports large numbers of highly loaded lines requiring safe, controlled diversion from clutches and jammers. Its 30 mm alloy sheaves ensure strength and durability under significant rope tensions.
The modular construction allows sheaves to be repositioned freely, while the tulip-shaped geometry minimises vertical deflection friction. Available in standard and low-profile formats, with fixed sheave inserts optional for increased deflection capacity.
Key Features
• Nine 30 mm alloy sheaves
• High-load aft organiser for intensive line diversion
• Adjustable spacing for custom layout optimisation
• Tulip-shaped sheaves reduce friction during vertical movement
• Standard and Low Profile options
• Optional fixed sheave inserts
• Endless line compatible
• Titanium upgrades available
• Custom spacing on request
Load Ratings – TSR30
• Individual sheave: 2500 kg
• Combined load: 1250 kg × number of sheaves
• 30° deflection: 5000 kg
• 60° deflection: 2500 kg
Applications on Sailing Yachts
• Large halyard and control line arrays on performance yachts
• Complex routing requiring precise spacing
• High-load reefing and downwind systems
• Installations requiring low-profile hardware
Spezifikationen
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 15 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| Blocks | |
|---|---|
| Sheave material | Aluminium |
| Sideplate material | Aluminium |
| Dimensions | |
|---|---|
| Lochabstand (mm) | 44 |
| Scheibe Ø (mm) | 29 |
| Gesamthöhe (mm) | 52 |
| Gesamtlänge (mm) | 392 |
| Gesamtbreite (mm) | 41 |
| Compatibility | |
|---|---|
| Option* | Standard oder Low Profile |
| Mounting fasteners | M10 CSK Head (supplied) |
| Weight | |
|---|---|
| Gewicht (g) | 2305 |
