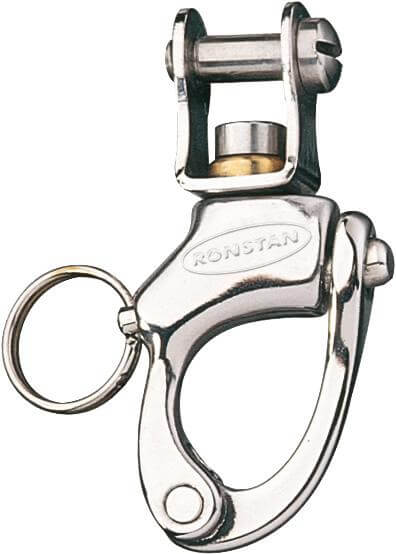

Specifications for Ronstan Schnappschäkel Gabelbügel 72mm
| Boat | |
|---|---|
| Style | Drehbarer Gabelbügel |
| Load | |
| SWL (kg) | 750 |
| NBL (kg) | 1500 |
| Dimensions | |
| A (mm) | 16 |
| B (mm) | 6,4 |
| C (mm) | 72 |
| D (mm) | 13 |
| Pin Ø (mm) | 6,4 |
| Gesamtlänge (mm) | 72 |
| Material | |
| Material | Edelstahl |
| Material Grade | 15-5PH SS |
| Weight | |
| Gewicht (g) | 64 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
