  2. Lopolight 2nm 180° Grün mit 0.75m Kabel

Lopolight 2nm 180° Grün mit 0.75m Kabel

https://www.upffront.com/web/image/product.template/219855/image_1920?unique=de6a61f

$ 341,51 341.51 USD $ 341,51

293,34 €

0% Rabatt

Available on request

Tage
:
Std
:
Minuten
:
Sekunden
  • Spannung unter Betrieb
  • Power supply type
  • Current draw (mA @ 12VDC)
  • Current draw (mA @ 24VDC)
  • Leistung (W)
  • Approved to
  • Lichtfarbe
  • Light type
  • Luminous Intensity (cd)
  • Operating temperature
  • Sichtweite (NM)
  • Wasserdichtigkeit
  • Marke
  • Boat size (m)
  • Boat type
  • Feed wire gauge Min
  • Material
  • Farbe
  • Connection
  • Montage
  • Gewicht (g)

Diese Kombination existiert nicht.

Product Image
  • Kabelgebundene Navigationslichter

    • Lopolight 2nm 180° Grün mit 0.75m Kabel

    $ 341,51 $ 341,51
    0% Off
    Add to Cart
    Kontaktieren Sie uns
    SKU:
    N/A
    Marke: Lopolight
    Shipping Info

    30 Tage Geld-zurück-Garantie

     14-tägiges Rückgaberecht

     Expressversand verfügbar

    Aktie :

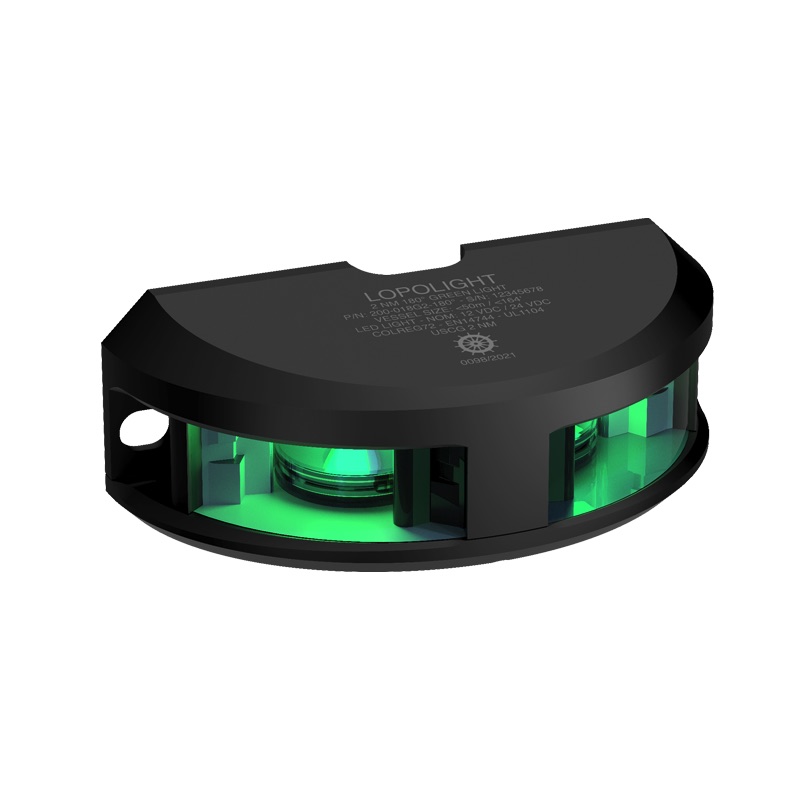

    Lopolight 2NM 180° Green Light – 0.75m Cable (Silver or Black Anodised)


    [Sector light – For vessels under 20m or specialist applications]

    The Lopolight 2NM 180° Green Light is a precision-engineered LED sector light designed for vessels under 20 metres or for specialist navigation and signalling roles. It projects a sharp 180° green beam visible to 2 nautical miles, ensuring reliable compliance with international standards in compact form.

    Built from anodised aluminium and available in Silver or Black finishes, the housing is both corrosion-resistant and rugged. Rated IP68, the epoxy-filled electronics are sealed against saltwater, UV exposure, and vibration.

    The fixture is supplied with a 0.75-metre marine-grade cable, providing a neat and straightforward connection for shorter installations.

    Key Features
    • Suitable for vessels under 20 metres or signalling applications
    • Emits a 180° green beam, visible to 2NM
    • Horizontal mount – compact and durable for exposed positions
    • Available in Silver or Black anodised aluminium housing
    • IP68 sealed with epoxy-filled electronics for marine durability
    • Supplied with 0.75m marine-grade cable
    • Low power draw – efficient LED output at 10–32 V
    • Fully compliant with COLREG72 and international standards
    • Alternative versions available with 6m or 20m cable (Silver or Black anodised)

    Spezifikationen

    Electrics
    Spannung unter Betrieb 10-32
    Power supply type dc.
    Current draw (mA @ 12VDC) 145
    Current draw (mA @ 24VDC) 60
    Leistung (W) 1.5
    Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
    Luminous Intensity (cd) >5.4
    Operating temperature -25°C to 55°C
    Sichtweite (NM) 2
    Wasserdichtigkeit IP68
    Boat
    Boat size (m) Under 12M oder 12-20M oder 20-50M
    Rigging
    Feed wire gauge Min 0.5mm2 AWG22
    Material
    Material Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane oder Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
    Undefined
    Farbe Schwarz oder Silber
    Compatibility
    Connection 0.75m cable
    Weight
    Gewicht (g) 340
