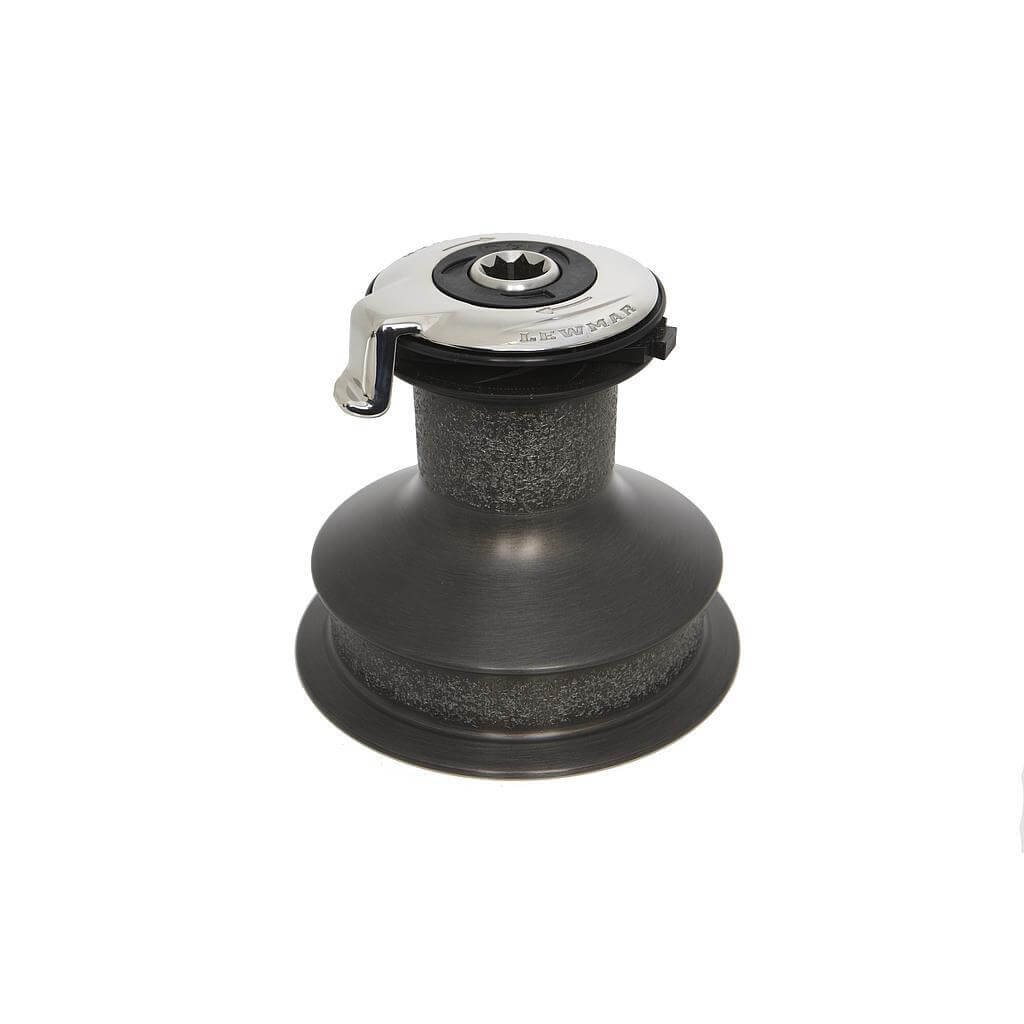

Specifications for Lewmar 45 2-Gang Self-Tailing EVOⓇ Speed Ring Winsch Alu Schwarz
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 1200 |
| Dimensions | |
| B (mm) | 205 |
| D (mm) | 86.8 |
| H (mm) | 177,5 |
| L (mm) | 84,5 |
| S (mm) | 170,5 |
| Basis Ø (mm) | 205 |
| Trommel Ø (mm) | 86.8 |
| Höhe (mm) | 177,5 |
| Leinen Einlaufhöhe (mm) | 84,5 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 2.36 |
| Getriebuntersetzung 2. Gang (X : 1) | 8 |
| Gänge (manuell) | 2-Gang |
| Line recovery per rotation - 1st gear (mm) | 236 |
| Line recovery per rotation - 2nd gear (mm) | 70 |
| Kraftuntersetzung 1. Gang (X : 1) | 13.86 |
| Kraftuntersetzung 2. Gang (X : 1) | 7 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Größe | 45 |
| Weight | |
| Gewicht (g) | 7600 |
| Garantie (Jahren) | 7 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
