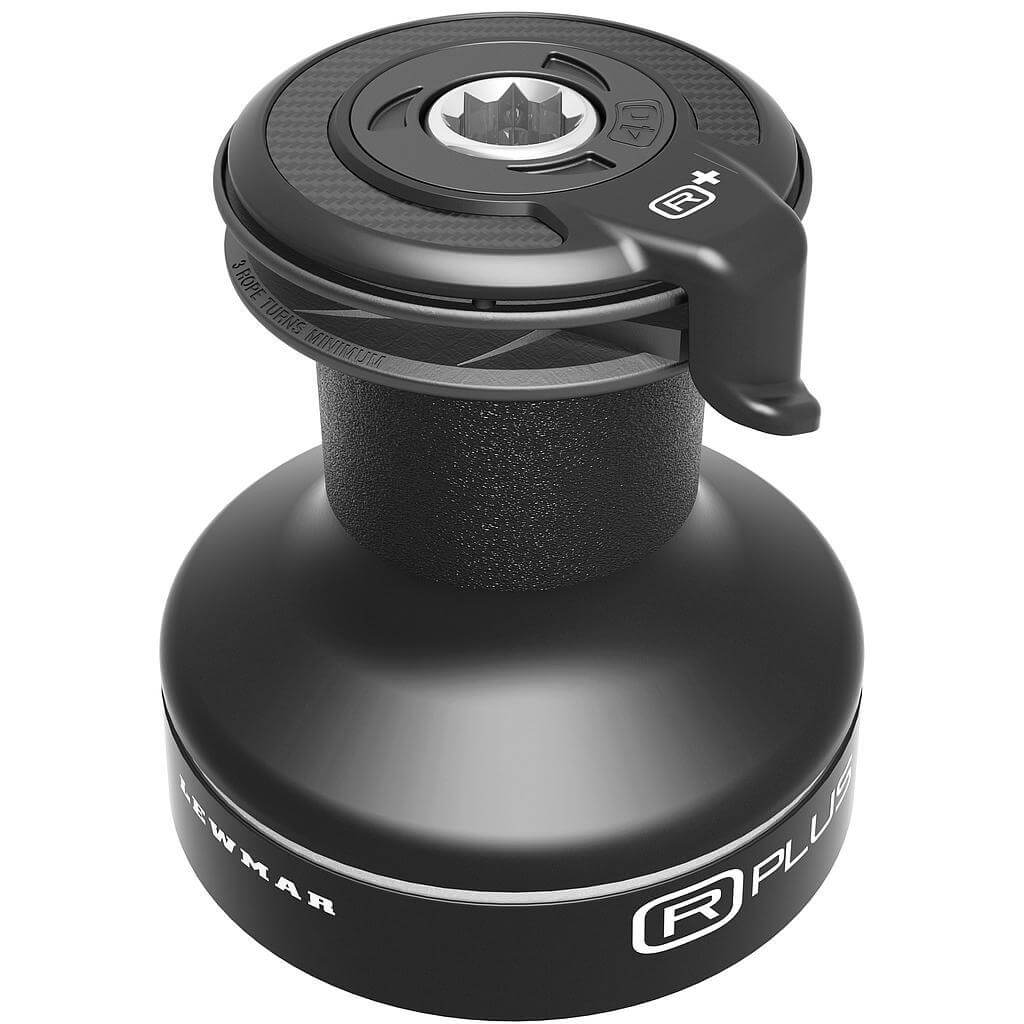

Specifications for Lewmar 40 2-Gang Self-Tailing EVOⓇ Race+ Winsch Schwarz ionisiert
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| B (mm) | 148 |
| D (mm) | 74 |
| H (mm) | 158.5 |
| L (mm) | 79 |
| Basis Ø (mm) | 148 |
| Trommel Ø (mm) | 74 |
| Höhe (mm) | 158.5 |
| Leinen Einlaufhöhe (mm) | 79 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 1.9 |
| Getriebuntersetzung 2. Gang (X : 1) | 5,8 |
| Gänge (manuell) | 2-Gang |
| Line recovery per rotation - 1st gear (mm) | 262 |
| Line recovery per rotation - 2nd gear (mm) | 86 |
| Kraftuntersetzung 1. Gang (X : 1) | 13,2 |
| Kraftuntersetzung 2. Gang (X : 1) | 40.2 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Größe | 40 |
| Weight | |
| Gewicht (g) | 3600 |
| Garantie (Jahren) | 7 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Boat | |
|---|---|
| Style | Self-Tailing |
| Dimensions | |
|---|---|
| B (mm) | 148 |
| D (mm) | 74 |
| H (mm) | 158.5 |
| L (mm) | 79 |
| Basis Ø (mm) | 148 |
| Trommel Ø (mm) | 74 |
| Höhe (mm) | 158.5 |
| Leinen Einlaufhöhe (mm) | 79 |
| Winches | |
|---|---|
| Getriebuntersetzung 1. Gang (X : 1) | 1.9 |
| Getriebuntersetzung 2. Gang (X : 1) | 5,8 |
| Gänge (manuell) | 2-Gang |
| Line recovery per rotation - 1st gear (mm) | 262 |
| Line recovery per rotation - 2nd gear (mm) | 86 |
| Kraftuntersetzung 1. Gang (X : 1) | 13,2 |
| Kraftuntersetzung 2. Gang (X : 1) | 40.2 |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Größe | 40 |
| Weight | |
|---|---|
| Gewicht (g) | 3600 |
| Garantie (Jahren) | 7 |
