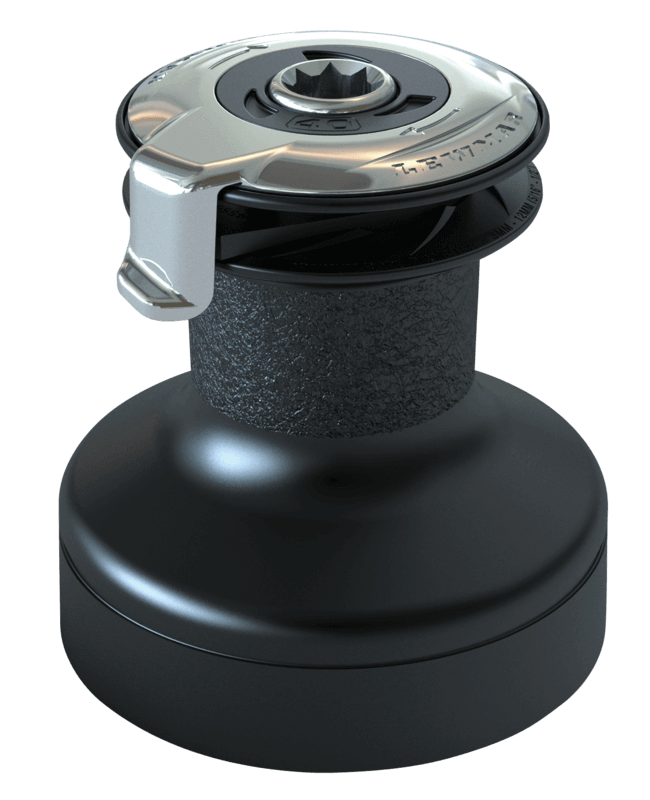

Specifications for Lewmar 15 1-Gang Self-Tailing EVOⓇ Winsch Alu Schwarz
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 570 |
| Dimensions | |
| B (mm) | 121 |
| D (mm) | 66.8 |
| H (mm) | 119 |
| L (mm) | 58 |
| Basis Ø (mm) | 121 |
| Trommel Ø (mm) | 66.8 |
| Höhe (mm) | 119 |
| Leinen Einlaufhöhe (mm) | 58 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 2 |
| Gänge (manuell) | 1-Gang |
| Kraftuntersetzung 1. Gang (X : 1) | 15,8 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Größe | 15 |
| Weight | |
| Gewicht (g) | 2600 |
| Garantie (Jahren) | 7 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Lewmar - How to Service an EVO Winch
A step-by-stepy guide to serviving the EVO winch by Lewmar
|
|
|
|
Lewmar Evo Winch
Overview of the EVO winch from Lewmar
|
|
|
15 EVO EXPLODE.pdf
Exploded Technical Drawing
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
|
|
|
Lewmar_EVO_B13124_Iss_2-3.pdf
|
|
|
|
Evo winch service-B2304iss9_2-2.pdf
|
