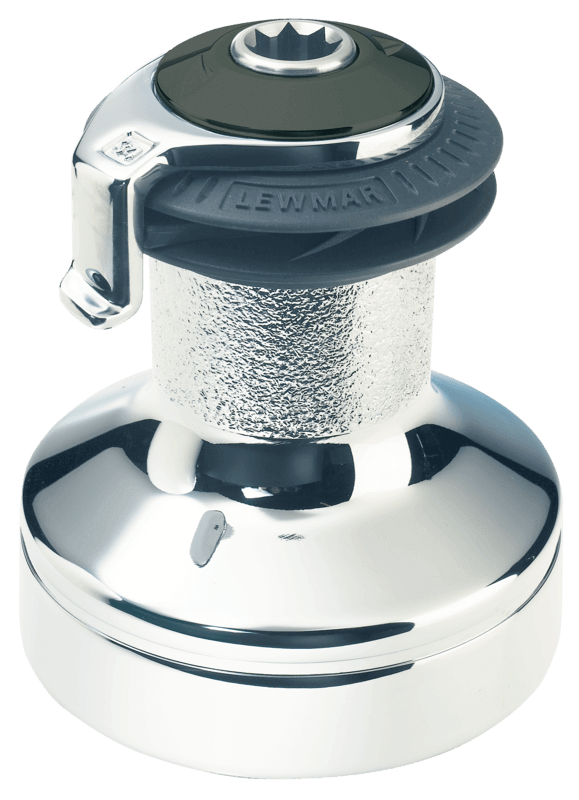

Specifications for Lewmar 14 1-Gang Self-Tailing Ocean Winsch verchromte Bronze
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 10 |
| Empfohlener min. Leinendurchmesser (mm) | 6 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| B (mm) | 121 |
| D (mm) | 65.7 |
| H (mm) | 121 |
| L (mm) | 58 |
| Basis Ø (mm) | 121 |
| Trommel Ø (mm) | 65.7 |
| Höhe (mm) | 121 |
| Leinen Einlaufhöhe (mm) | 58 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 2 |
| Gänge (manuell) | 1-Gang |
| Kraftuntersetzung 1. Gang (X : 1) | 15,8 |
| Material | |
| Material | verchromte Bronze |
| Undefined | |
| Größe | 14 |
| Weight | |
| Gewicht (g) | 5100 |
| Garantie (Jahren) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Lewmar - How to Service an Ocean Winch
A step-by-stepy guide to serviving the Ocean winch by Lewmar
|
|
|
Manual-Winch Part Manual - Volume 10.pdf
Manual - Volume 10
|
|
|
|
Manual-Winch Service Manual B2304 iss6-2.pdf
B2304 - Issue 6
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
