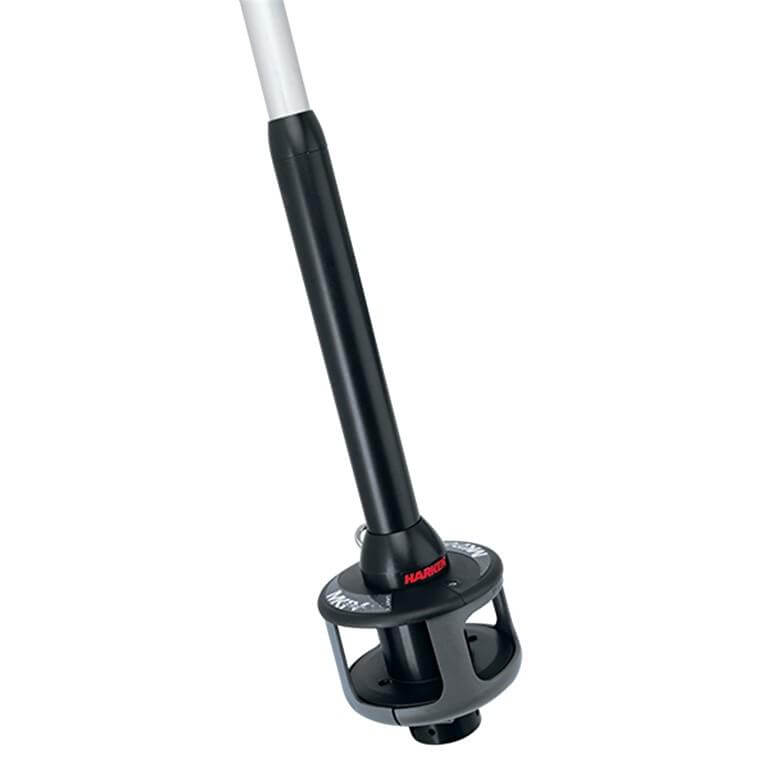

Specifications for Harken MKIV Ocean Unit 3 Rollreffanlage
| Boat | |
|---|---|
| Empfohlene max. Bootsgröße (ft.) | 80 |
| Empfohlene min. Bootsgröße (ft.) | 45 |
| Dimensions | |
| A (mm) | 186 |
| B (mm) | 296 |
| C (mm) | 86 |
| D (mm) | 247 |
| E (mm) | 121 |
| F (mm) | 1286 |
| G (mm) | 467 |
| H (mm) | 240 |
| I (mm) | 188 |
| J (mm) | 50 |
| Trommel Ø (mm) | 247 |
| Pin Ø (mm) | 28,6 |
| Max. Drahtdurchmesser (mm) | 16 |
| Furling | |
| Extrusion Länge (mm) | 2130 |
| Extrusion Ø (mm) | 50 |
| Extrusion Referenz | 7513.30 |
| Max. Vorstaglänge (mm) | 27030 |
| Standard Vorstaglänge (mm) | 22760 |
| Luff groove (Single/Double) | Einfache Vorlieksnut |
| Luff rope Ø (mm) | 5 |
| Rigging | |
| Max. Rod dash Größe | -48 |
| Rod Ø Max (mm) | 14,3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
