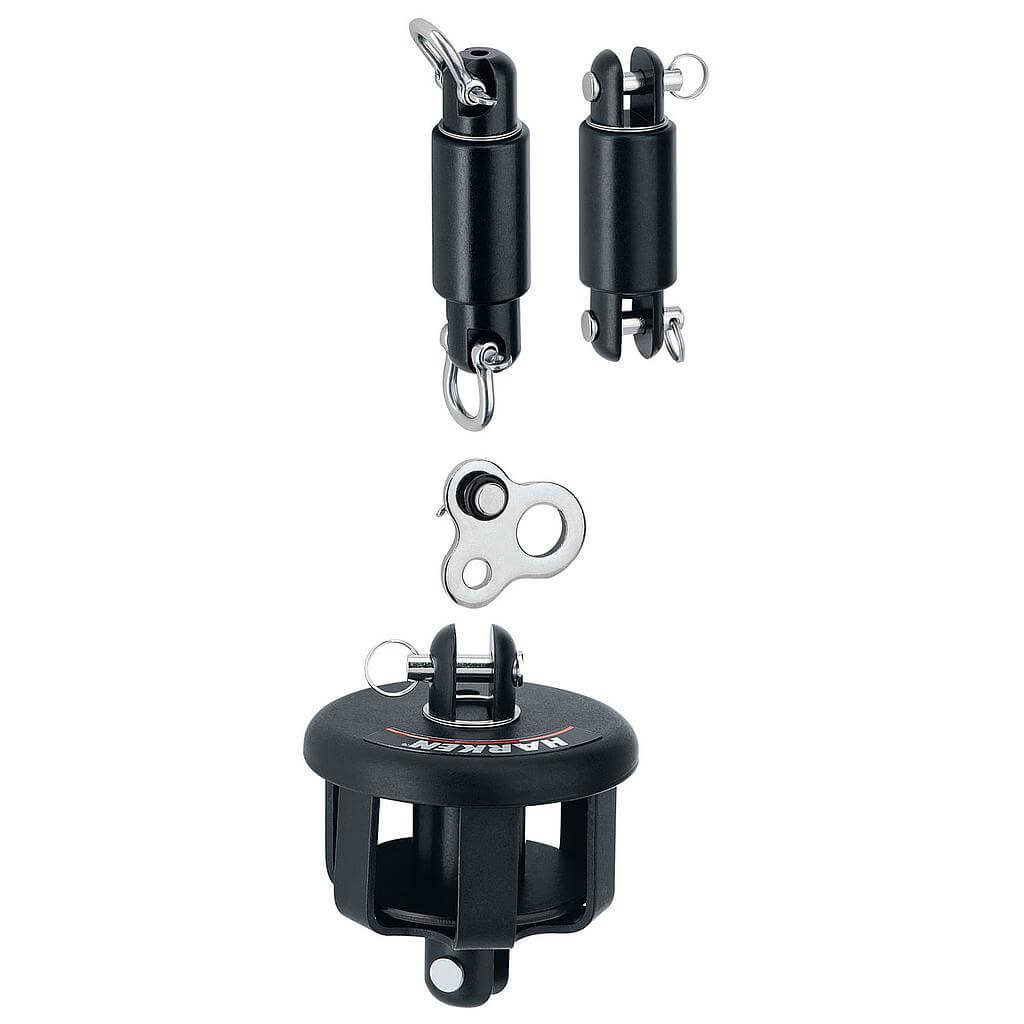

Harken Small Boat furling systems allow the trailerable cruising or dinghy sailor to set and furl the jib from the cockpit. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake. The hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. This system includes 165 drum, 164 upper swivel and 464 hoistable swivel. Harken Small Boat units are for furling only, not reefing.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 4 |
| Boat | |
|---|---|
| Empfohlene max. Bootsgröße (ft.) | 20 |
| Empfohlene min. Bootsgröße (ft.) | 16 |
| Load | |
|---|---|
| SWL (kg) | 431 |
| NBL (kg) | 862 |
| Dimensions | |
|---|---|
| Trommel Ø (mm) | 73 |
| Gabelpin Ø (mm) | Informationen folgen |
| Gabelweite (mm) | 8 |
| Pin Ø (mm) | 6 |
| Max. Drahtdurchmesser (mm) | 4 |
| Weight | |
|---|---|
| Gewicht (g) | 318 |
