Harken 90 1-Speed Electric (Vertical) 24V Polished Bronze Unipower Radial Winch (1-Speed Manual)
Specifications for Harken 90 1-Speed Electric (Vertical) 24V Polished Bronze Unipower Radial Winch (1-Speed Manual)
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Electrics | |
| Voltage (V) | 24 Monate |
| Leistung (W) | 900 |
| Speed (Motor) | 1-Speed |
| Boat | |
| Style | Compact |

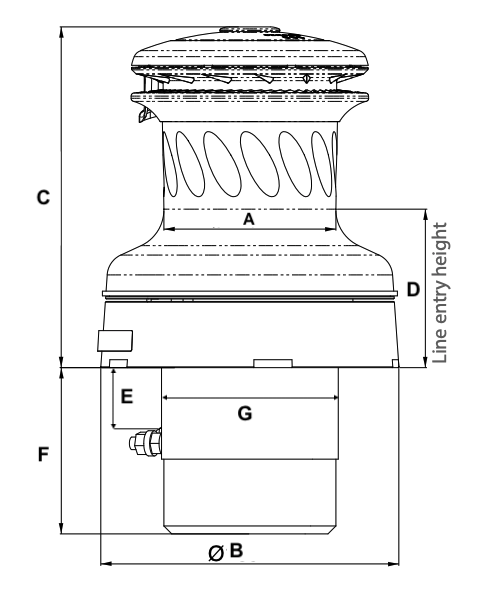

| Dimensions | |
| A (mm) | 110 |
| B (mm) | 189 |
| C (mm) | 215 |
| D (mm) | 100 |
| E (mm) | 35 |
| F (mm) | 105 |
| G (mm) | 140 |
| Basis Ø (mm) | 189 |
| Trommel Ø (mm) | 110 |
| Höhe (mm) | 215 |
| Leinen Einlaufhöhe (mm) | 100 |
| Motor Depth (mm) | 105 |
| Motor Length (mm) | 140 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 100 |
| Gänge (manuell) | 1-Speed |
| Line recovery per rotation - 1st gear (mm) | 3 |
| Line speed - 1st gear (m/min) | 25 |
| Kraftuntersetzung 1. Gang (X : 1) | 9.75 |
| Pulling load - Max (kg) | 900 |
| Skirt Details | Bronze |
| Material | |
| Material | Bronze |
| Undefined | |
| Deckstärke max. (mm) | 35 |
| Größe | 90 |
| Weight | |
| Gewicht (g) | 15700 |
| Garantie (Jahren) | 2 |
|
Harken Unipower Winch
Harken present and discuss their Unipower Winch
|
|
|
Harken_Winch_Selection.pdf
Harken Winch Selection
|
|
|
|
Harken_Radial_Winches.pdf
Harken Radial Winches
|
|
|
|
Harken_Electric Winches.pdf
Harken Electric Winches
|
|
|
|
WP - Winch selection guide.pdf
|
Electric Self-Tailing Unipower Radial Polished Bronze Winch
Electric winches allow crew to trim any size sail with the push of a button. Choices include 1, 2-, and 3-speeds, in self-tailing, shaped or sandblasted grips, standard or wide drums. Available in aluminum, chrome, aluminum/stainless, stainless steel, or bronze, in 12- or 24-volt. Energy-efficient motors accomplish more work per unit of electricity consumed. Motors attach to central drive shaft and drive through winch gears for mechanical advantage.
The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12- or 24-volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8") below the winch base—a critical feature for small boats where space under the cabin top is limited.
Bronze winches combine the elegance of highly-polished finishes with the dependable low-friction pulling power of Harken gearing systems.
Spezifikationen
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Electrics | |
|---|---|
| Voltage (V) | 24 Monate |
| Leistung (W) | 900 |
| Speed (Motor) | 1-Speed |
| Boat | |
|---|---|
| Style | Compact |
| Dimensions | |
|---|---|
| A (mm) | 110 |
| B (mm) | 189 |
| C (mm) | 215 |
| D (mm) | 100 |
| E (mm) | 35 |
| F (mm) | 105 |
| G (mm) | 140 |
| Basis Ø (mm) | 189 |
| Trommel Ø (mm) | 110 |
| Höhe (mm) | 215 |
| Leinen Einlaufhöhe (mm) | 100 |
| Motor Depth (mm) | 105 |
| Motor Length (mm) | 140 |
| Winches | |
|---|---|
| Getriebuntersetzung 1. Gang (X : 1) | 100 |
| Gänge (manuell) | 1-Speed |
| Line recovery per rotation - 1st gear (mm) | 3 |
| Line speed - 1st gear (m/min) | 25 |
| Kraftuntersetzung 1. Gang (X : 1) | 9.75 |
| Pulling load - Max (kg) | 900 |
| Skirt Details | Bronze |
| Material | |
|---|---|
| Material | Bronze |
| Undefined | |
|---|---|
| Deckstärke max. (mm) | 35 |
| Größe | 90 |
| Weight | |
|---|---|
| Gewicht (g) | 15700 |
| Garantie (Jahren) | 2 |
