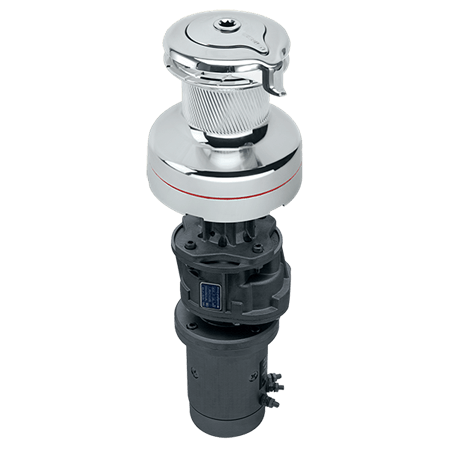

Harken 70 3-Gang Elektrisch (Vertikal) 24V Vollchrom Radial Winsch (3-Gang manuell)
MPN:
N/A
Marke:
Harken
Specifications for Harken 70 3-Gang Elektrisch (Vertikal) 24V Vollchrom Radial Winsch (3-Gang manuell)
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 18 |
| Empfohlener min. Leinendurchmesser (mm) | 10 |
| Electrics | |
| Voltage (V) | 24 Monate |
| Leistung (W) | 2000 |
| Speed (Motor) | 3-Gang |
| Boat | |
| Style | Vertikal |
| Dimensions | |
| A (mm) | 131 |
| B (mm) | 240 |
| C (mm) | 264 |
| D (mm) | 115 |
| L (mm) | 394 |
| N (mm) | 156 |
| Basis Ø (mm) | 240 |
| Trommel Ø (mm) | 131 |
| Höhe (mm) | 264 |
| Leinen Einlaufhöhe (mm) | 115 |
| Motor Depth (mm) | 394 |
| Motor Length (mm) | 156 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 2,3 |
| Getriebuntersetzung 2. Gang (X : 1) | 5,7 |
| Getriebuntersetzung 3. Gang (X : 1) | 18,5 |
| Gänge (manuell) | 3-Gang |
| Line recovery per rotation - 1st gear (mm) | 179 |
| Line recovery per rotation - 2nd gear (mm) | 72 |
| Line recovery per rotation - 3rd gear (mm) | 22 |
| Line speed - 1st gear (m/min) | 55,1 |
| Line speed - 2nd gear (m/min) | 22,2 |
| Line speed - 3rd gear (m/min) | 6,9 |
| Kraftuntersetzung 1. Gang (X : 1) | 9 |
| Kraftuntersetzung 2. Gang (X : 1) | 22,2 |
| Kraftuntersetzung 3. Gang (X : 1) | 72 |
| Pulling load - Max (kg) | 2700 |
| Skirt Details | Verchromt |
| Material | |
| Material | verchromte Bronze |
| Undefined | |
| Größe | 70 |
| Weight | |
| Gewicht (g) | 29700 |
| Garantie (Jahren) | 2 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
