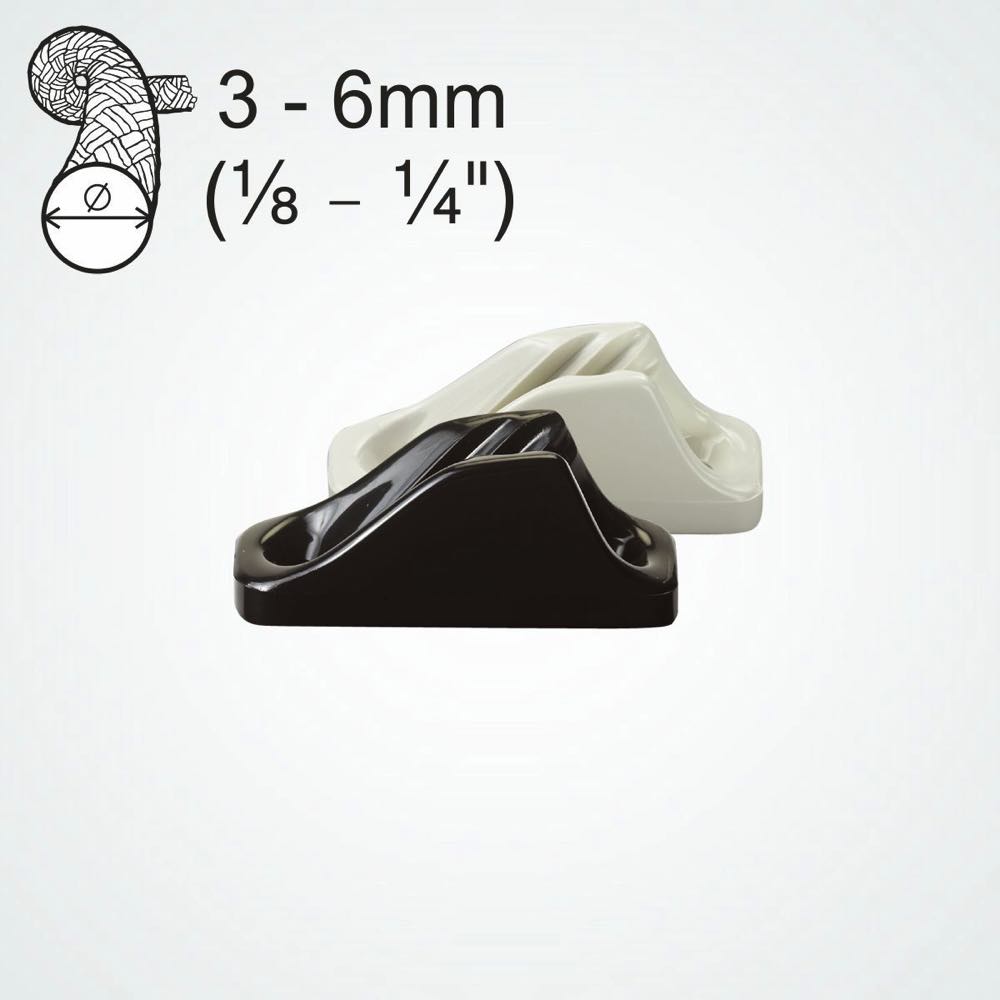

Clamcleat CL204 Mini Nylon Rope Cleat for 3–6mm Lines
The Clamcleat CL204 Mini Nylon Rope Cleat is an elegant, compact design available in black or white UV-resistant nylon. Suitable for ropes from 3–6mm, it provides a quick, positive lock as the rope drops cleanly into the teeth and releases easily when needed.
Lightweight yet durable, the CL204 can be fitted to both flat and curved surfaces using rivets, countersunk screws, or bolts. It can also be sewn, riveted, or bolted onto webbing or fabric — making it an adaptable cleat for both marine and general outdoor use.
Common applications include control lines on dinghies and kayaks, as well as non-marine uses such as greenhouse vents or window blind cords.
Colour options:
- CL204 – Black Nylon
-
CL204W – White Nylon
(Other colours available to special order.)
For improved rope alignment, a CL802 Tapered Pad can be fitted underneath.
Other related models:
- CL222 – Aluminium version for higher load applications.
- CL274 – Smaller version of the CL204.
- CL209 – Larger nylon cleat for heavier loads and thicker lines.
Spezifikationen
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 6 |
| Empfohlener min. Leinendurchmesser (mm) | 3 |
| Boat |
|---|
| Dimensions | |
|---|---|
| Fixing hole Ø (mm) | 4 |
| Lochabstand (mm) | 36 |
| Höhe (mm) | 21 |
| Length (mm) | 52 |
| Width (mm) | 17 |
| Undefined | |
|---|---|
| Farbe | Schwarz oder Weiß |
| Weight | |
|---|---|
| Gewicht (g) | 9 |
