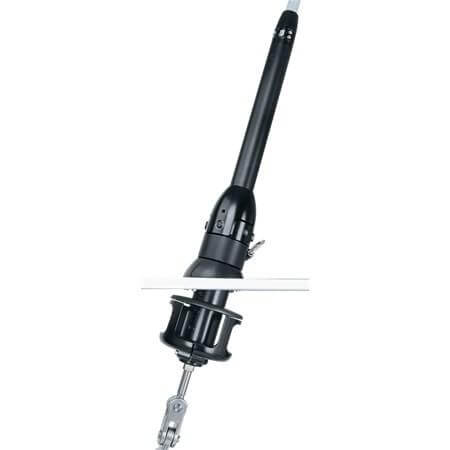

Specifications for Harken MKIV Unit 1 Sistema avvolgifiocco sottocoperta
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 28 |
| Dimensions | |
| A (mm) | 397 - 270 |
| B (mm) | 140 |
| C (mm) | 244 - 117 |
| J (mm) | 25 |
| K (mm) | 29 |
| Ø tamburo (mm) | 140 |
| Ø perno (mm) | 12.7 |
| Ø cavo metallico Max (mm) | 8 |
| Furling | |
| Lunghezza estrusione (mm) | 2130 |
| Ø estrusione (mm) | 25 |
| Riferimento estrusione | 7411.30 |
| Peso estrusione (g/m) | 515 |
| Lunghezza strallo Max (mm) | 16120 |
| Lunghezza strallo Std. (mm) | 13990 |
| Canaletta ralinga (Singola/Doppia) | Doppia canaletta d’inferitura |
| Ø ralinga (mm) | 5 |
| Rigging | |
| Dimensione asta DASH Max | -10 |
| Ø stelo Max (mm) | 6.35 |
| Weight | |
| Peso (g) | 43 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Harken MKIV, MKIC Ocean & MKIV Underdeck Range.pdf
Harken Catalogue for the MKIV, MKIV Ocean and MKIV Underdeck Ranges.
|
|
|
|
MKIV Unit 1,2,3 UD_EN.pdf
English Jib Reefing and Furling Installation Manual for H-7411.11 1/2 (Unit 1), H-7412.11 5/8 (Unit 2), H-7413.11 3/4 (Unit 3) and H-7413.11 7/8 (Unit 3) Furlers
|
