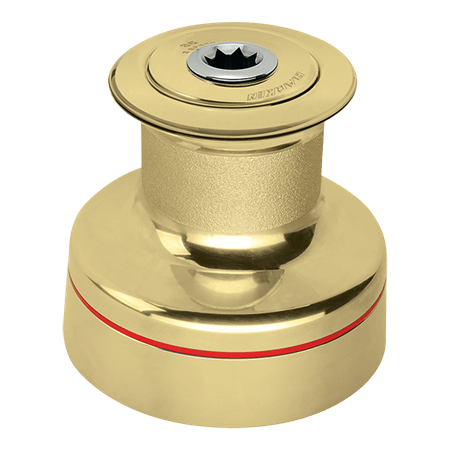

Specifications for Winch Harken 20 Radial Bronze 2 vitesses à capot lisse
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | N/A |
| Cordage recommandé – Ø Min (mm) | N/A |
| Boat | |
| Style | Plain-Top |
| Load | |
| Charge de travail (kg) | 550 |
| Dimensions | |
| A (mm) | 73 |
| B (mm) | 137 |
| C (mm) | 128 |
| D (mm) | 61 |
| Diamètre de l'embase | 137 |
| Ø tourelle (mm) | 73 |
| Hauteur (mm) | 128 |
| Hauteur d’entrée du cordage (mm) | 61 |
| Winches | |
| Vitesse 1 (X : 1) | 1 |
| Vitesse 2 (X : 1) | 2,76 |
| Vitesse (manuelle) | 2 vitesses |
| Puissance 1 (X : 1) | 6,95 |
| Puissance 2 (X : 1) | 19,2 |
| Material | |
| Matériau | Bronze |
| Undefined | |
| Taille | 20 |
| Weight | |
| Poids (g) | 3600 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation. Plain-top winches are best handled by two crew—one to trim and one to tail the line. Harken's all-bronze finish enhances your yacht’s classic look, while providing the low-friction pulling power of Harken’s gearing systems.
