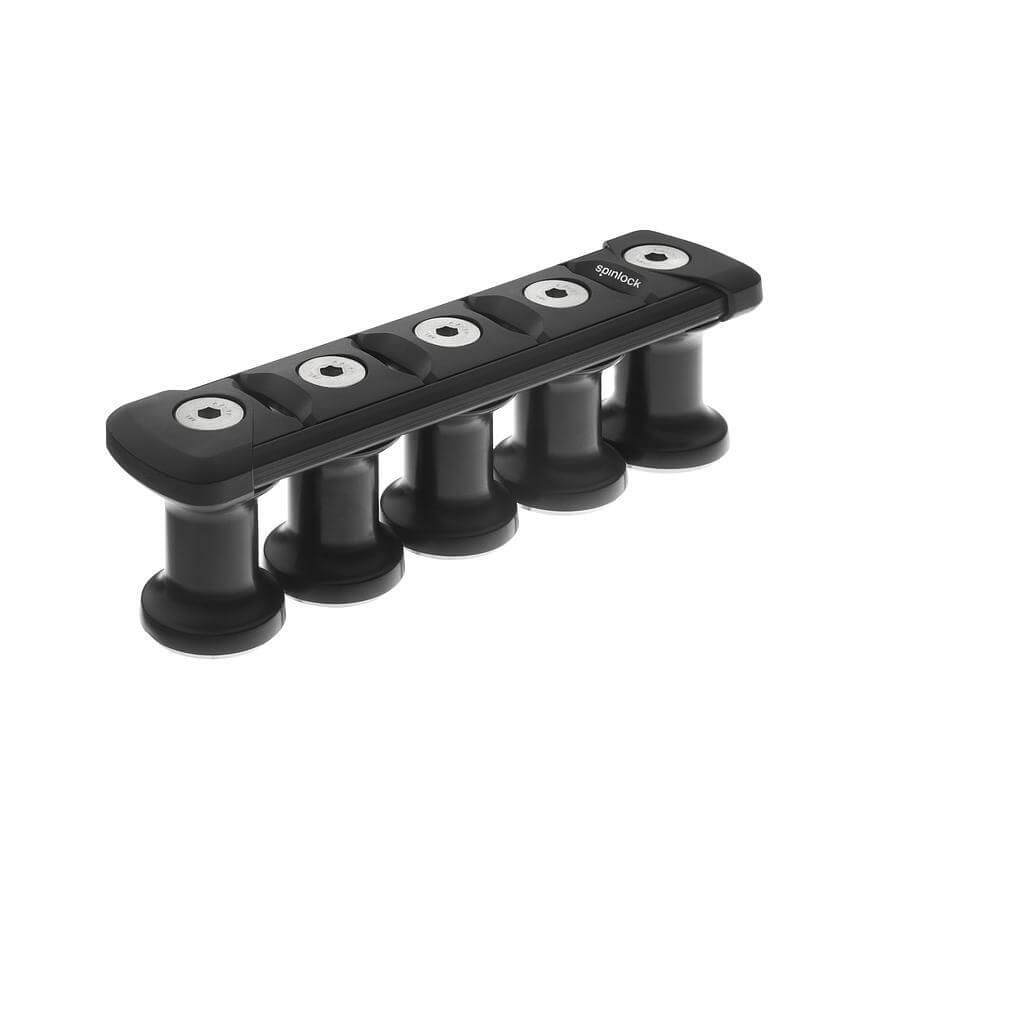

Spinlock TSR30 – 5 Sheave Organiser (Standard and Low Profile)
The Spinlock TSR30 5 Sheave Organiser offers increased capacity for diverting multiple high-load lines from clutches and jammers while maintaining efficiency and low friction. Featuring 30 mm alloy sheaves, the TSR30 handles large rope diameters and significant deflection angles reliably.
Sheaves rotate on plain bearings housed within a modular top rail, allowing custom spacing for optimal line separation. The tulip-shaped sheave design reduces friction during vertical movement, improving control and reducing rope wear. The low-profile TSR30L version suits installations where height is restricted, and fixed sheave inserts can be fitted to increase deflection load capacity.
Key Features
• Five 30 mm alloy sheaves
• High-load aft organiser for clutch/jammer outputs
• Adjustable spacing via modular rail system
• Tulip geometry reduces vertical friction
• Fixed sheave inserts available
• Standard and Low Profile variants
• Endless line compatible
• Titanium parts available
• Custom spacing and mixed sheave sizes on request
Load Ratings – TSR30
• Individual sheave: 2500 kg
• Combined load: 1250 kg × number of sheaves
• 30° deflection: 5000 kg
• 60° deflection: 2500 kg
Applications on Sailing Yachts
• High-load halyard and reefing line diversion
• Dense multi-line decks on large performance cruisers
• Low-profile solutions for mast-base and tunnel systems
• Custom spacing for complex control systems
Spécifications
| Option* | Standard ou Low Profile |
| Largeur totale (mm) | 41 |
| Cordage recommandé – Ø Max (mm) | 15 |
| Hauteur totale (mm) | 52 |
| L'espacement des trous de fixation (mm) | 44 |
| Longueur totale (mm) | 216 |
| Ø réas (mm) | 29 |
| Mounting fasteners | M10 CSK Head (supplied) |
| Sideplate material | Alliage |
| Sheave material | Alliage |
| Charge de travail (kg) | 2500 |
| Charge de rupture (kg) | 5000 |
| Poids (g) | 1279 |
