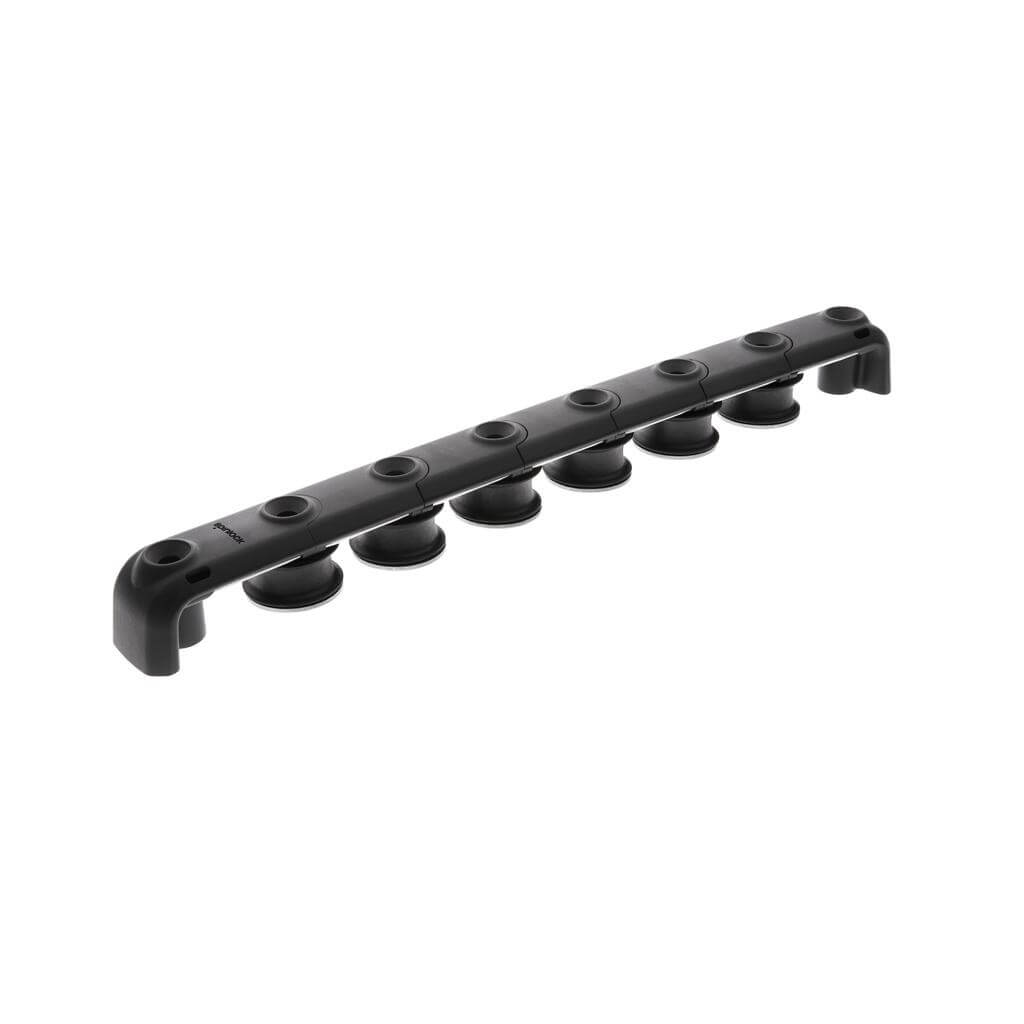

Spinlock T25 – 6 Sheave Organiser (Symmetric and Asymmetric)
The Spinlock T25 6 Sheave Organiser is the largest unit in the T25 family, designed for yachts that need to route up to six lines aft while maintaining a compact, low-profile deck layout. Featuring 25 mm sheaves, a fibre-reinforced construction, and a stainless steel wear strip, it provides dependable performance across a wide range of halyard and control line applications.
The stainless steel unlinked base ensures secure mounting on curved coachroof profiles, while the curved body shape helps maintain fair, low-friction line paths. With Symmetric and Asymmetric versions, the 6 Sheave organiser can be matched precisely to your deck geometry.
Key Features
• Six 25 mm sheaves for maximum multi-line routing
• Durable fibre-reinforced construction
• Stainless steel wear strip prevents rope damage
• Unlinked stainless steel base ideal for curved deck mounting
• Symmetric and Asymmetric configurations for tailored installation
• Curved body profile ensures efficient, fair leads
• Safe Working Load (SWL): 400 kg
Applications on Sailing Yachts
Best suited to yachts with complex running rigging requirements or those transitioning all key lines aft to the cockpit. Typical uses include:
• Full suites of halyards: main, jib, gennaker, spinnaker, and topping lift
• Two reefing lines plus combined vang, cunningham, outhaul, and tack line systems
• Multi-sail performance cruisers with extensive trimming options
• Integration into stacked organiser sets for dense, efficient line management
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 10 |
| Boat |
|---|
| Load | |
|---|---|
| Charge de travail (kg) | 400 |
| Charge de rupture (kg) | 800 |
| Blocks | |
|---|---|
| Sheave material | Composite |
| Sideplate material | Composite |
| Dimensions | |
|---|---|
| L'espacement des trous de fixation (mm) | 32 |
| Ø réas (mm) | 25 |
| Hauteur totale (mm) | 24 |
| Longueur totale (mm) | 254 |
| Largeur totale (mm) | 25 |
| Compatibility | |
|---|---|
| Option* | Symmetric ou Asymmetric |
| Mounting fasteners | M5 CSK Head (not supplied) |
| Weight | |
|---|---|
| Poids (g) | 160 |
