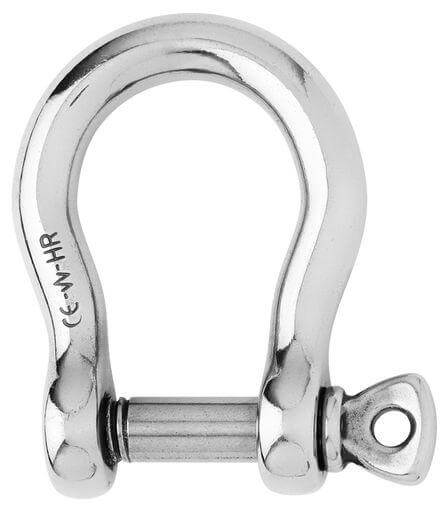

Specifications for Manille lyre HR Wichard - Ø 12 mm
| Boat | |
|---|---|
| Load | |
| Charge de travail (kg) | 3600 |
| Charge de rupture (kg) | 10000 |
| Dimensions | |
| A (mm) | 55 |
| B (mm) | 24 |
| C (mm) | 12 |
| D (mm) | 24 |
| E (mm) | 10 |
| M (mm) | 63 |
| Ø axe (mm) | 12 |
| Material | |
| Matériau | Acier inoxydable |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
| Poids (g) | 224 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
