Vertically mounted with 6m cable
Included in package:

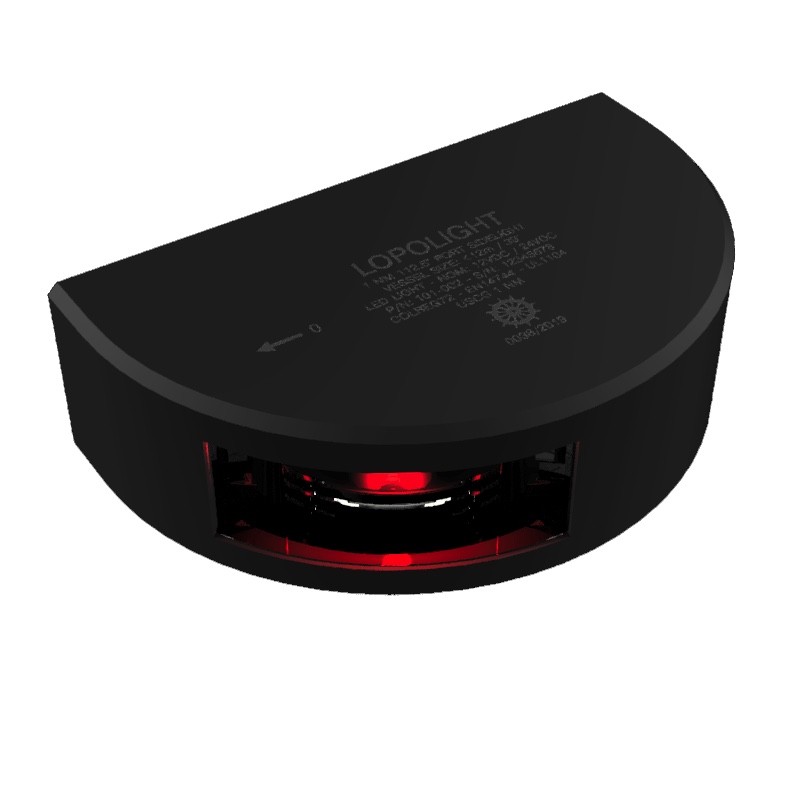

1 Navigation light
Installation guide
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Electrics | |
|---|---|
| Tension de fonctionnement | 10-32 |
| Power supply type | dc. |
| Current draw (mA @ 12VDC) | 60 |
| Current draw (mA @ 24VDC) | 32 |
| Power (W) | 1.1 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >1.2 |
| Operating temperature | -25°C to 55°C |
| Visibility (NM) | 1 |
| Résistant à l'eau | IP68 |
| Boat | |
|---|---|
| Boat size (m) | Under 12M |
| Dimensions | |
|---|---|
| Dimensions (mm) | 92,5 x 28 x 49,7 |
| Rigging | |
|---|---|
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Material | |
|---|---|
| Matériau | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Undefined | |
|---|---|
| Couleur | Noir ou Argent |
| Compatibility | |
|---|---|
| Connection | 6m cable |
| Weight | |
|---|---|
| Poids (g) | 630 |
