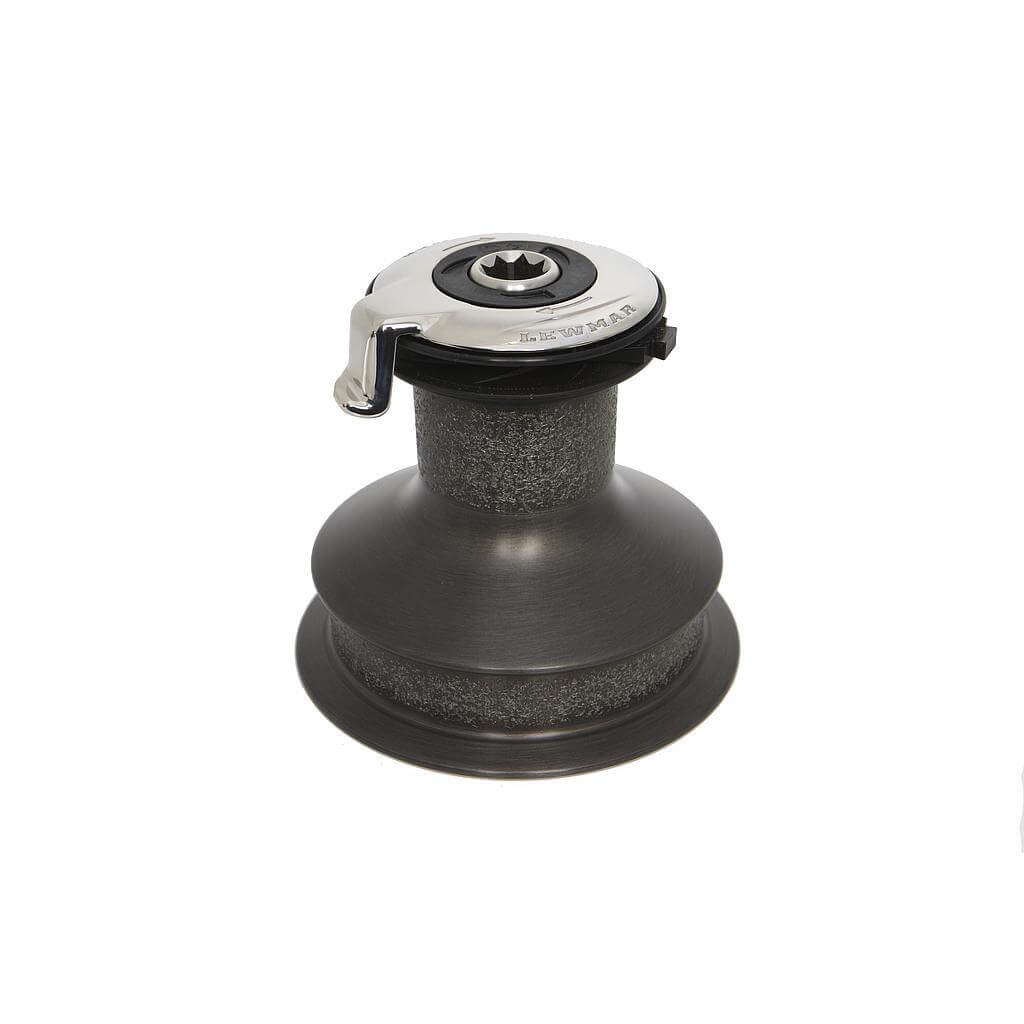

Specifications for Lewmar 45 2 vitesses Winch autobloquant alliage noir EVOⓇ Speed Ring
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 12 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Boat | |
| Style | Auto-coinceur |
| Load | |
| Charge de travail (kg) | 1200 |
| Dimensions | |
| B (mm) | 205 |
| D (mm) | 86.8 |
| H (mm) | 177,5 |
| L (mm) | 84,5 |
| S (mm) | 170,5 |
| Diamètre de l'embase | 205 |
| Ø tourelle (mm) | 86.8 |
| Hauteur (mm) | 177,5 |
| Hauteur d’entrée du cordage (mm) | 84,5 |
| Winches | |
| Vitesse 1 (X : 1) | 2.36 |
| Vitesse 2 (X : 1) | 8 |
| Vitesse (manuelle) | 2 vitesses |
| Line recovery per rotation - 1st gear (mm) | 236 |
| Line recovery per rotation - 2nd gear (mm) | 70 |
| Puissance 1 (X : 1) | 13.86 |
| Puissance 2 (X : 1) | 7 |
| Material | |
| Matériau | Aluminium |
| Undefined | |
| Taille | 45 |
| Weight | |
| Poids (g) | 7600 |
| Garantie (année) | 7 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
